15 tons-28 tons heavy-duty diesel forklifts, whose main key parts are all from well-known Chinese manufacturers, are one of our best-selling products. The whole vehicle has excellent performance, is reliable and durable, has high safety, and has a calm and simple appearance. The product has a wide range of uses and is suitable for working environments with heavy working conditions such as ports, railways, and steel.
Item No :
CPCDOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
50-60 daysWeight :
25000-35000 kg15 tons to 28 tons heavy duty counterbalanced diesel forklift
15 tons-28 tons heavy-duty diesel forklifts, a new series of forklifts designed and manufactured with the latest technology, provide you with excellent working performance. The high-level operating performance, comfortable driving experience, simple and safe operation of the forklift will make your work more handy. The vehicle has excellent performance, reliability and durability, high safety, and a calm and simple appearance. The product has a wide range of uses and is suitable for working environments with heavy working conditions such as ports, railways, and steel.

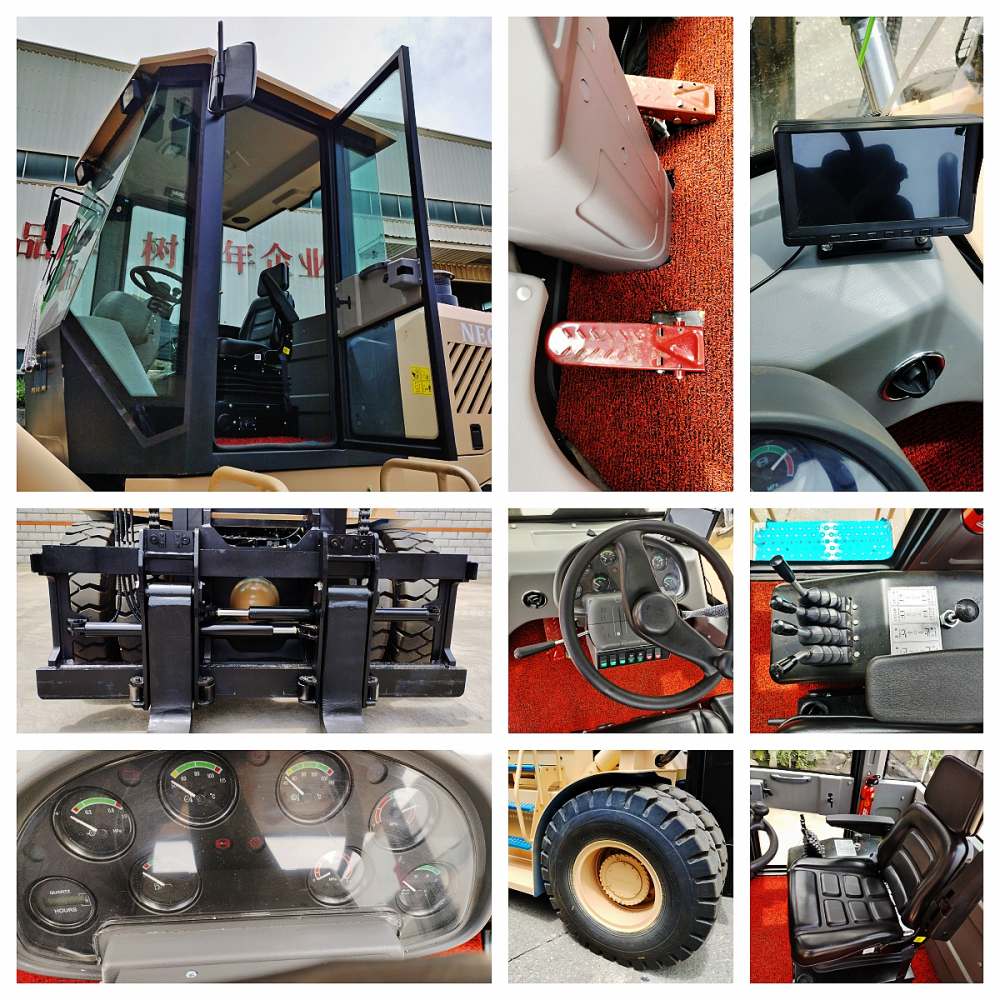

Details:
Feature:
1. The hydraulic system is highly efficient and energy-saving, reducing the fuel consumption of the vehicle.
2. The lifting system has upper and lower buffers to reduce the impact and vibration of the mast.
3. The power brake system is used to greatly reduce the pedal force.
4. The control handle is placed on the right, which effectively reduces the fatigue of the arm.
5. The double-handle car-style combination switch makes the operation more simple and comfortable.
6. The field of vision is greatly improved.
7. The spacious boarding and alighting pedals and driving space increase the leg space.
8. The engine automatic monitoring system automatically shuts down the engine when the engine oil pressure is too low or the water temperature is too high.
9. The cab is formed by a special-shaped steel roof guard frame through the surrounding panels, and the high-strength roof makes you safer.
10. The parking brake increases the safety protection measures. After the handbrake is pulled, the forklift will not move even if the steering handle is pulled.

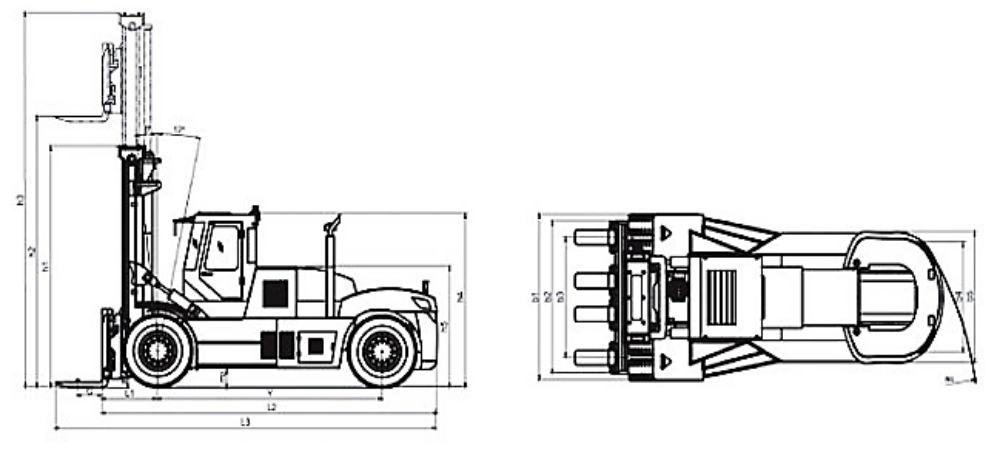

Specification:
| Manufacturer | NEOlift | |||||
| Model | CPCD140 | CPCD160 | CPCD180 | CPCD200 | CPCD250 | |
| Rated Load | kg | 14000 | 16000 | 18000 | 20000 | 25000 |
| Weight | kg | 17500 | 25000 | 27000 | 30000 | 33500 |
| Mast lifting height | mm | 3500 | 3500 | 3500 | 4000 | 4000 |
| Overall width | mm | 2320 | 2750 | 2750 | 2930 | 3060 |
| Fork dimension | mm | 2200*200*80 | 2200*200*90 | 2200*220*100 | 2200*240*100 | 2400*280*105 |
| Traction | KN | 110 | 110 | 120 | 140 | 160 |
| Driving brake | Hydraulic clamp disc | |||||
| Engine brand/model | Optional 1 | Yuchai Engine | WeiChai Engine | |||
| YC6B125-T21 | YC6B160Z-T20 | YC6B160Z-T20 | WP10G220E | WP10G220E | ||
| Optional 2 | Cummins | |||||
| Rated Output | 110(Kw) | 129(Kw) | 129(Kw) | 162(Kw) | 162(Kw) | |
| Cylinder No. | 6 | |||||
| Transmission gears(Front/rear) | 2/1 | |||||
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
