The electric counterbalanced multi-directional forklift has a load capacity of 3 tons, a lifting height of 3 to 8 meters, is equipped with a mast tilt function, a standard side shift and fork positioning function, a front dual-wheel drive, a three-point structure, three-wheel independent control, and a compact design structure, making the vehicle more flexible.
Item No :
NRQPOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
40-45 daysWeight :
7120 kg3 tons electric counterbalanced multi-directional forklift
The electric counterbalanced multi-directional forklift has a load capacity of 3 tons and a lifting height of 3 to 8 meters. It is equipped with a mast tilt function, a standard side shift and distance adjustment function, a front double-wheel drive, a three-point structure, and independent control of three wheels. The compact design structure makes the vehicle more flexible. The forklift can move sideways, straight, and rotate 360 degrees in place. It can travel in narrow channels and is very suitable for stacking long materials in a small space. Compared with standard counterbalanced forklifts, it significantly reduces the width of the right-angle stacking channel, thereby providing excellent overall performance. It is widely used in industries such as plates, steel, and pipes.

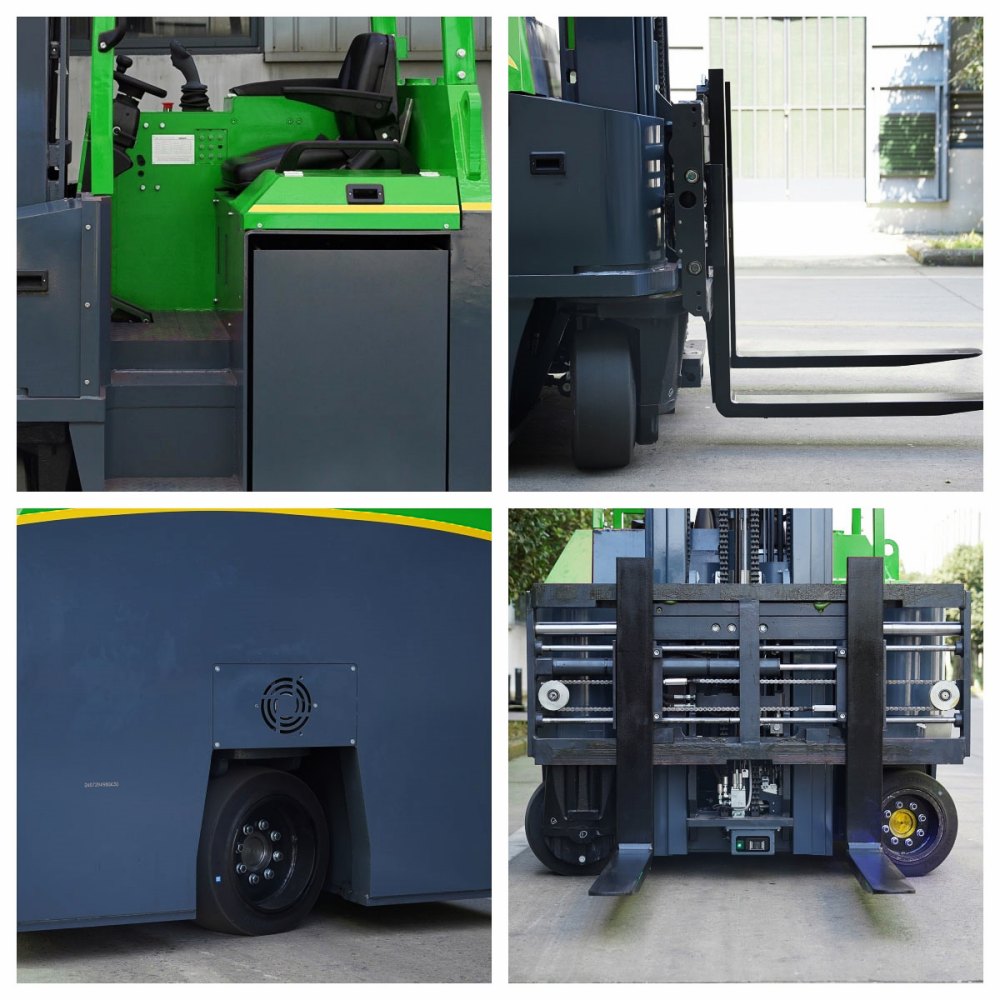

Details:
Feature:
1.Compact design, smaller body, suitable for narrow lane operations
2.Standard large-capacity brand battery, fast charging, longer battery life
3.Uninterrupted switching design for straight, side, diagonal and in-situ rotation driving modes
4.Solid rubber tires, suitable for indoor and outdoor operations
5.Imported Curtis controller, more stable operating system
6.Maintenance-free full AC system
7.High-performance seat, more comfortable operation
8.Better mast vision
9.Sturdy structure, durable
10.All-round safety guarantee

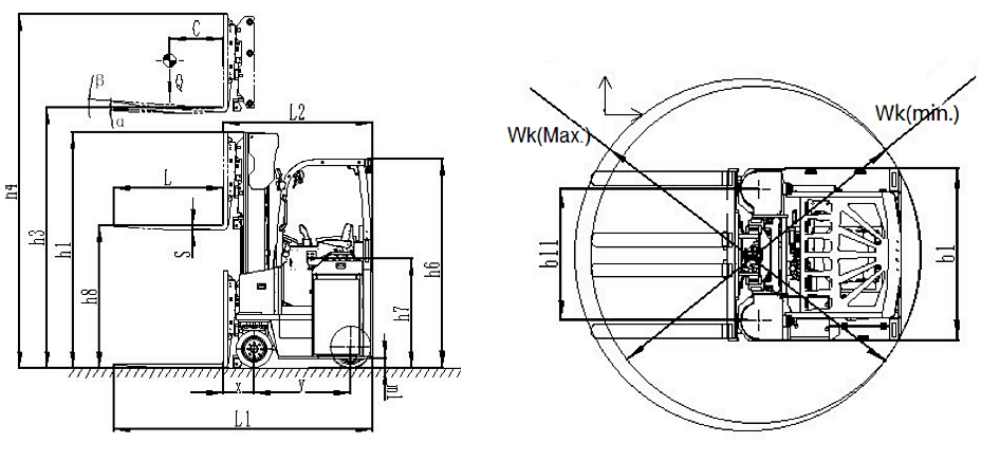

Specification:
| Capacity | kg | 3000 |
| Lifting height | mm | 3000-8000 |
| Load center | mm | 500 |
| Front overhang | mm | 346 |
| Wheelbase | mm | 1055 |
| Tyre type | Solid rubber | |
| Overall length | mm | 2560 |
| Overall width | mm | 1540 |
| Side Travel Speed, laden/unladen | km/h | 7～8 |
| Lifting Speed, laden/unladen | mm/s | 230/350 |
| Service weight(incl. battery) | kg | 7120 |
| Battery capacity | V/Ah | 48/900 |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics

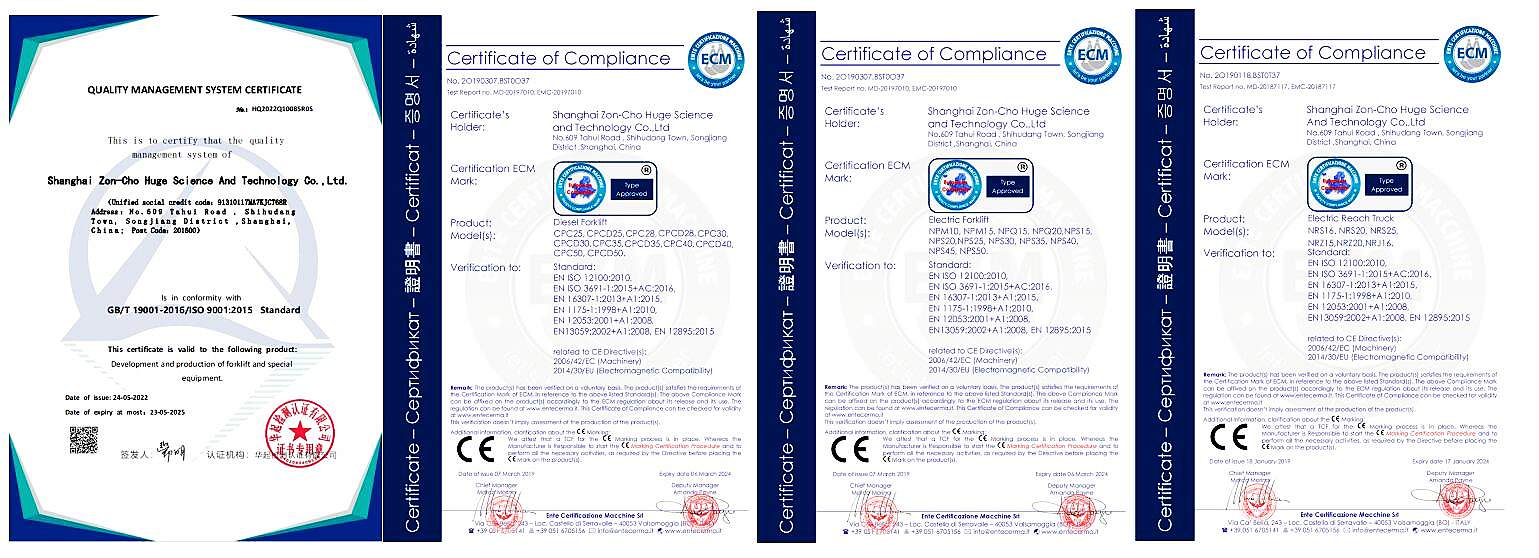

Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
