Heavy-duty electric counterbalanced forklifts, with a load capacity of 6-18 tons and a lifting height of 3-8 meters, do not simply replace diesel engines with electric motors, but thoroughly optimize the hydraulic system. Independently developed variable speed load-sensitive dedicated control system, large closed-loop feedback of hydraulic parameters, torque prediction and direct torque control, global power matching, on-demand oil supply, and reduced throttling and overflow losses. Imported electronic control is used, and the vehicle is equipped with lithium batteries as standard, with a stable system, strong power, and greater safety and efficiency.Non-standard customized solutions can be provided according to customer requirements.
Item No :
NPSOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
50-55 daysWeight :
10000-25000kg6-18 Tons Heavy Duty Electric Counterbalance Forklift
Heavy-duty electric counterbalanced forklift, with a load capacity of 6-18 tons and a lifting height of 3-8 meters, adopts multi-motor coordinated control, reasonable motor load matching, optimized energy management, and efficient operation; time-sharing work, automatic idling shutdown, and reduced motor and pump idling energy consumption. 80V/540V high-voltage solution, reducing current; high-efficiency permanent magnet synchronous motor, intelligent door drive variable speed control, extremely low heat generation, saving 20% more electricity than asynchronous motors. Regenerative power generation for various negative loads, based on power lithium battery energy recovery, improves the energy utilization of the whole machine.
Details:
Feature:
1. Economic:
Low cost of use: The cost of electricity is about 20~30% of the fuel consumption of traditional engineering machinery.
Low maintenance cost: Few wearing parts, low failure rate, simple maintenance.
2. The battery system is safe, efficient, and long-life, and can be used normally for 8~10 years, solving the pain points that users care about. The lithium iron phosphate battery has good thermal stability, which solves the risk of spontaneous combustion or explosion caused by thermal runaway, and the safety is essentially improved compared with the ternary lithium battery.
3. Reliable high performance:
Electric vehicle-grade motor and controller, full vehicle component status monitoring, electrical system IP67 protection level, high-quality and mature hydraulic parts, flame-retardant material wires, reliable and durable, adaptable to harsh working environments.
4. Strong endurance:
Independently developed whole machine drive solution and integrated management and control system, hydraulic system distributed multi-motor, high-efficiency interval operation, walking braking kinetic energy, cargo descending potential energy recovery and regeneration power generation, significantly reducing power consumption under the same conditions and improving endurance.
5. Comfortable and environmentally friendly:
Zero emission, zero pollution.
Low noise: The noise generated by the electric motor when working is much lower.
Low vibration: The vibration generated by the electric motor is much lower improves the driving experience.
Easy to operate: The intelligent, fully electronic control system reduces labor intensity.

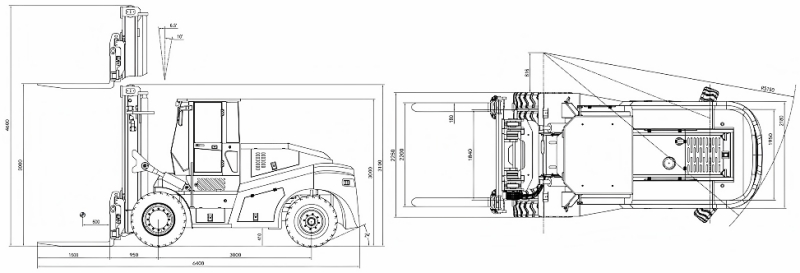

Specification:
| Model | NPS120 | |
| Power type | Battery | |
| Rated capacity | kg | 12000 |
| Load center | mm | 600 |
| Wheelbase | mm | 3200 |
| Service weight | kg | 15000 |
| Wheel type | Pneumatic tire | |
| Number of wheels,front/rear (x=drive wheel) | 4x/2 | |
| Mast tilting | ° | 6/12 |
| Overall width | mm | 2240 |
| Driving speed(load/unload) | km/h | 13/15 |
| Lifting speed(load/unload) | mm/s | 260/280 |
| Max.Gradeability(load/unload)(S2-5min) | % | 14/15 |
| Driving motor(S2-60min) |
kw | AC30 |
| Steering system |
Hydraulic type | |
| Brake type | Hydraulic type |

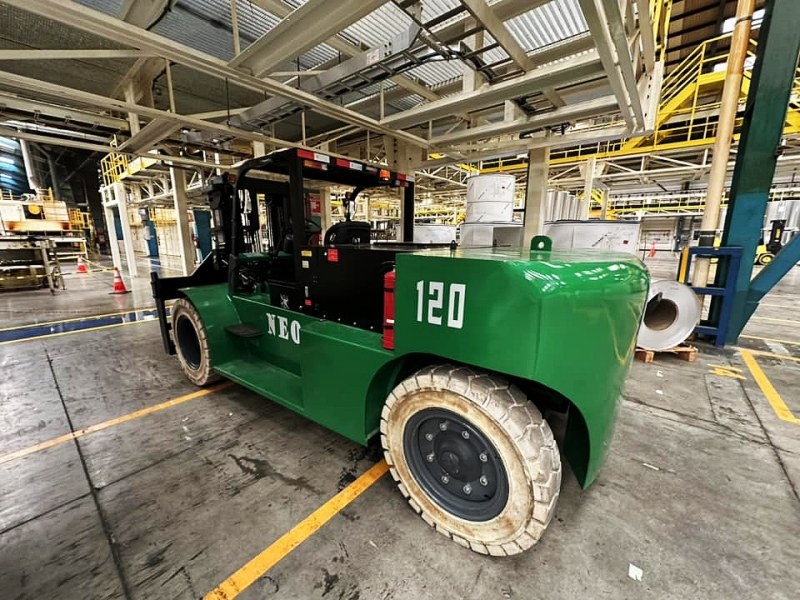

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
