7 to 12 ton heavy-duty diesel forklifts, with the latest design, more compact structure, better visibility and higher safety. Optional Chinese or imported engines. Can be customized according to customer needs, and can also be equipped with various attachments. Products are widely used in logistics, factories, mines and ports and other industries.
Item No :
CPCDOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
30-35 daysWeight :
9000-14000 kg7tons to 12tons heavy duty diesel forklift truck
7-12 ton heavy duty diesel counterbalanced forklifts are widely used in factories, warehouses, stations, docks, ports, etc. for loading and unloading of packaged goods. After being equipped with other work accessories, they can also be used for loading and unloading of bulk goods and other non-packaged piece goods.

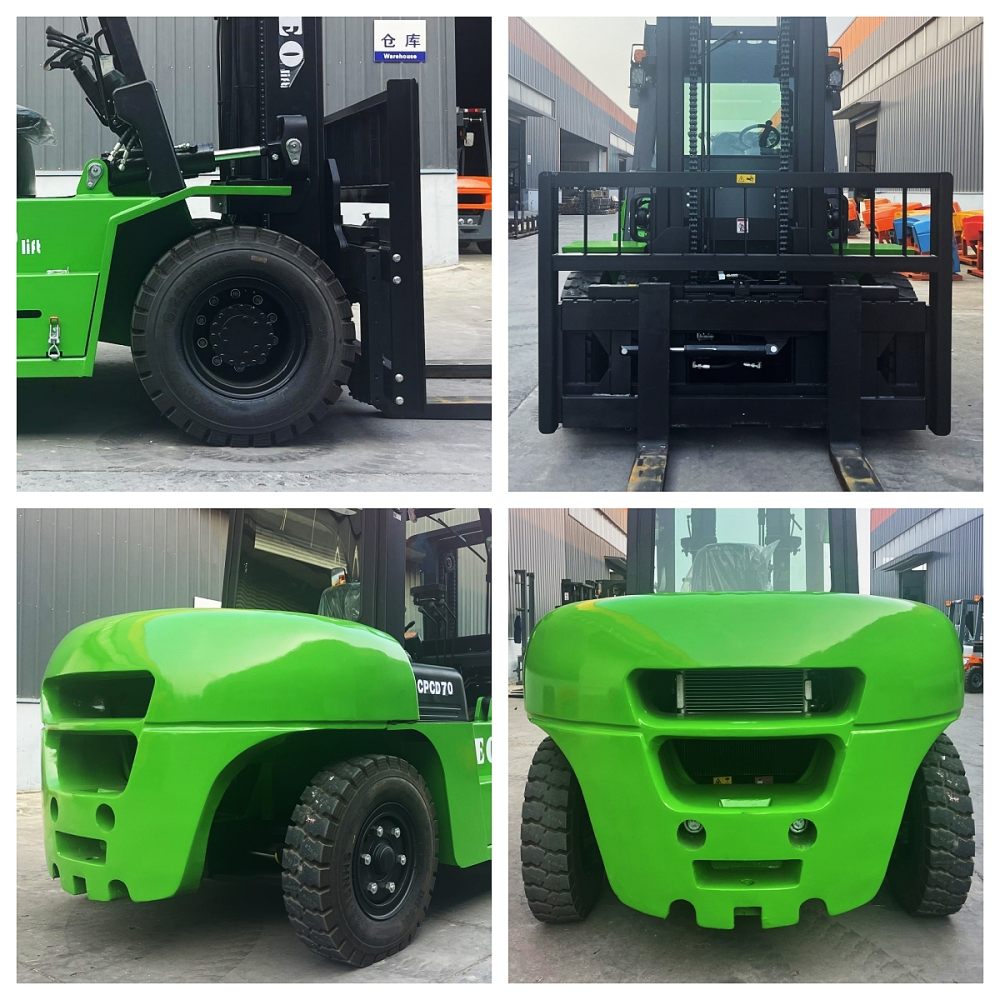

Details:
Feature:
1. Load sensing and dual-pump confluence hydraulic system technology are adopted, with high operating efficiency and low energy consumption of the whole machine.
2. A 9-inch large air filter with a safety filter is adopted.
3. A split radiator is adopted, which has better heat dissipation effect and reliable thermal balance of the whole machine.
4. The standard vacuum booster brake system can effectively prevent dust from entering the brake master cylinder, which is mature and reliable.
5. Equipped with a wide-view lifting system and a wide-angle rearview mirror, the driver has a good field of vision.
6. The steering wheel has a technical double-thread adjustment mechanism, which is easy to operate.
7. Equipped with a CAN bus instrument with an LCD screen, the driver can understand the engine status in real time through the LCD screen.
8. The optimized hood locking mechanism is adopted, and the hood opening is flexible and reliable.
9. The transmission oil filter and hydraulic return oil filter adopt an external structure, which is convenient and quick to repair and maintain.
10. The hood has a large opening angle, providing a more spacious working space for inspection and maintenance.

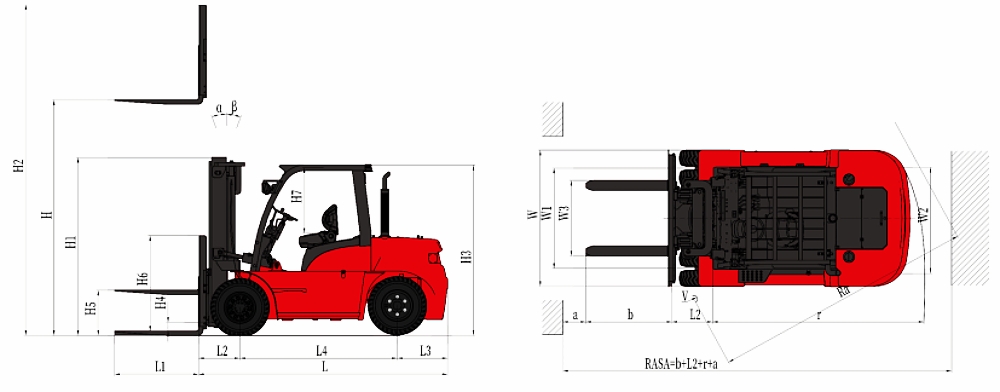

Specification:
| Manufacturer | NEOlift | ||||
| Model | CPCD60 | CPCD70 | CPCD80 | CPCD100 | |
| Fuel type | Diesel | Diesel | Diesel | Diesel | |
| Capacity | kg | 6000 | 7000 | 8000 | 10000 |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 |
| Fork size | mm | 1220×150×60 | 1220×150×65 | 1220×175×80 | 1220×175×80 |
| Full length with forks | mm | 4770 | 4880 | 4820 | 5565 |
| Overal width | mm | 1995 | 1995 | 1995 | 2260 |
| Weight | Kg | 8640 | 9350 | 9850 | 12500 |
| Engine model | Xichai | Xichai | Xichai | Xichai | |
| Gearbox | hydraulic | hydraulic | hydraulic | hydraulic | |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
