The load capacity of articulated forklifts is 1.5 tons to 3 tons, and the maximum lifting height is 12.5 meters.It adopts a front single-drive mechanical differential axle design, a maintenance-free full AC motor, and a high-speed ratio gearbox to provide stronger climbing ability. The articulated forklift has the functions of three types of traditional counterbalanced forklifts, pallet trucks, and high-position storage forklifts, truly achieving one-stop material handling and storage indoors and outdoors. The articulated design is very suitable for operation in narrow aisles.
Item No :
NVJOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Green/Red/Yellow/CustomizedLead Time :
50-60daysWeight :

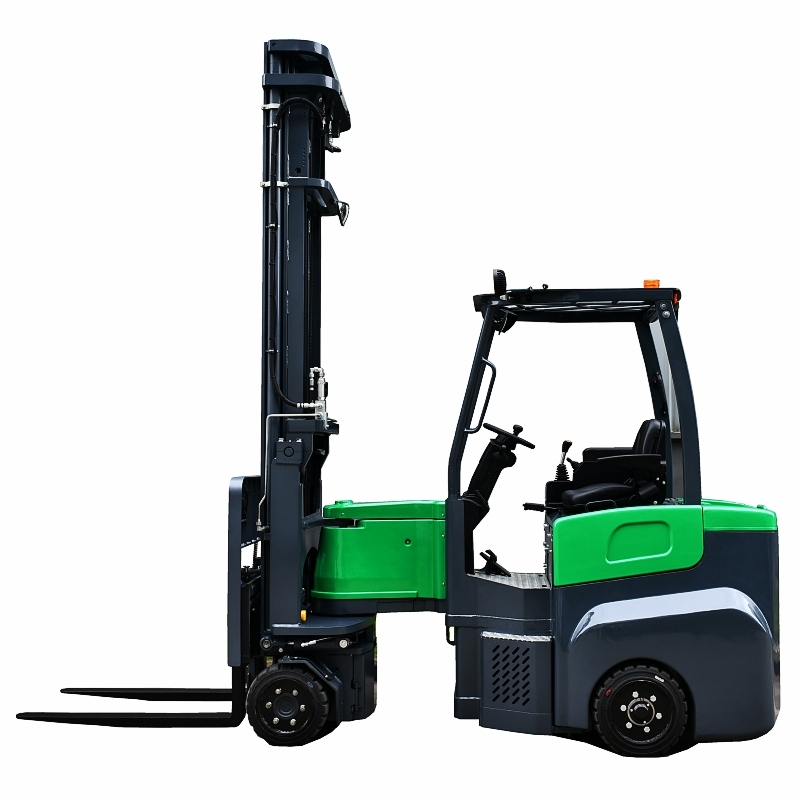

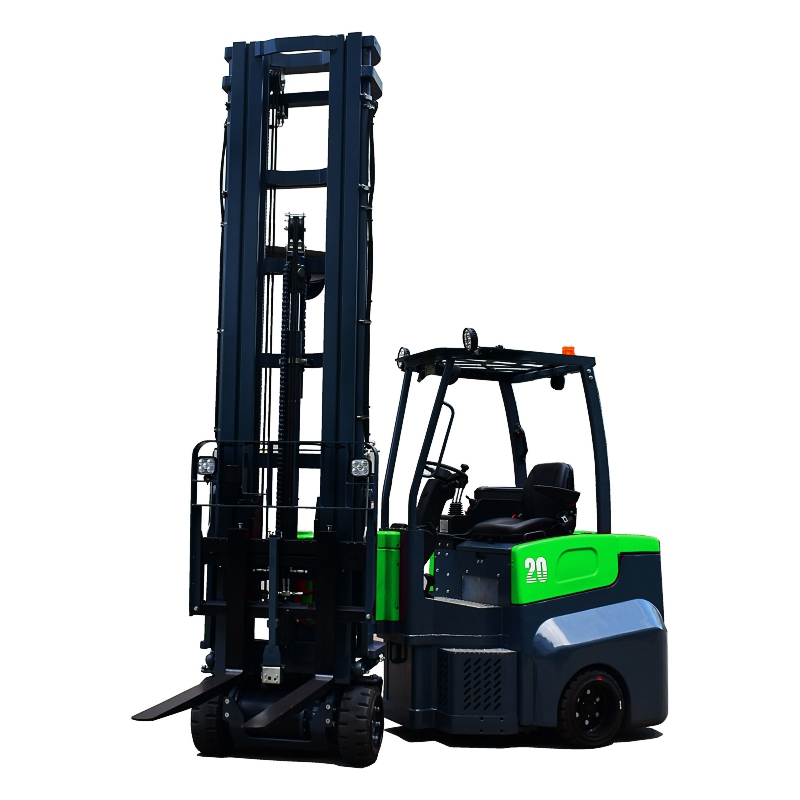

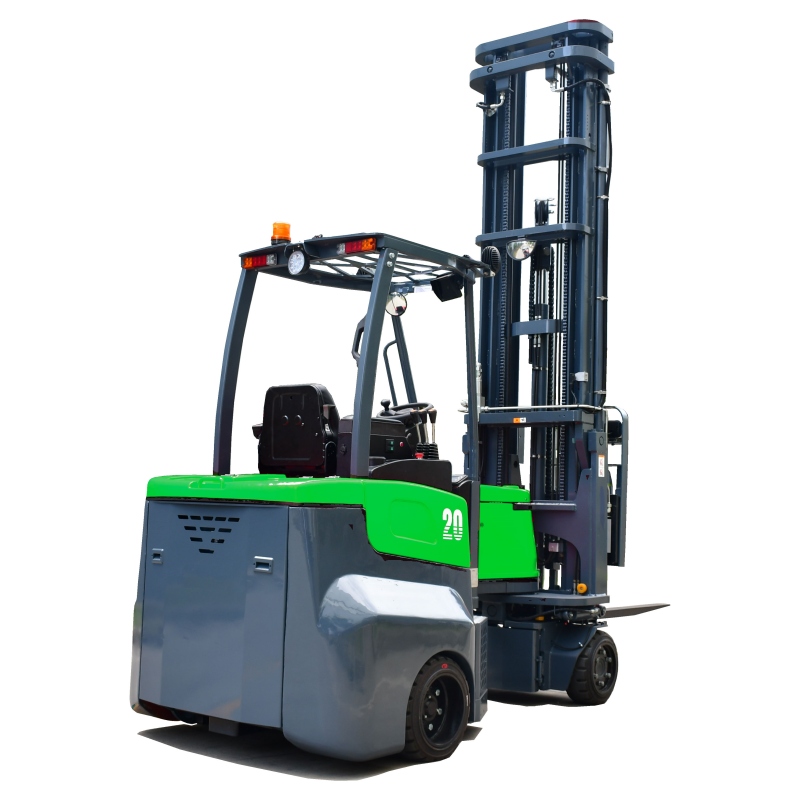

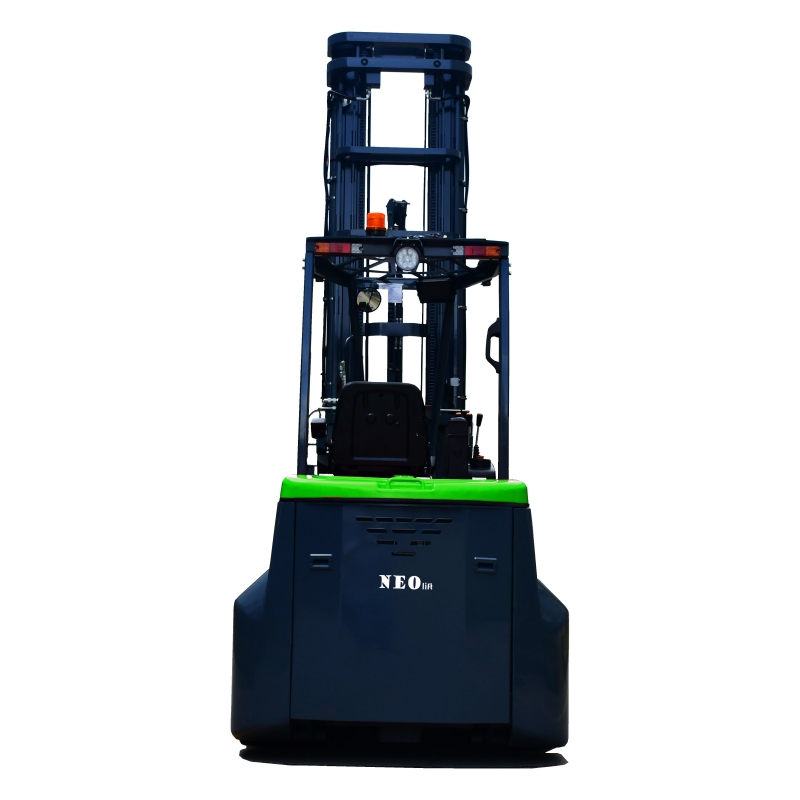

7200kgElectric articulated forklift for very narrow aisle storage
Compared with traditional counterbalanced forklifts and reach forklifts, electric articulated forklifts have a significant advantage in terms of ultra-high lifting height (up to 12.5 meters), which allows warehouses to arrange higher storage shelves, thereby increasing the warehouse capacity. High-performance articulated forklifts, with a load capacity of 1.5 tons to 3 tons, a maximum lifting height of 12.5 meters, solid rubber tires, adaptable to various complex road conditions, and one-stop handling inside and outside the warehouse. Meet medium and heavy-duty working conditions. At the same time, pursue to meet customers' needs for high work efficiency, high lifting speed, and high driving speed.

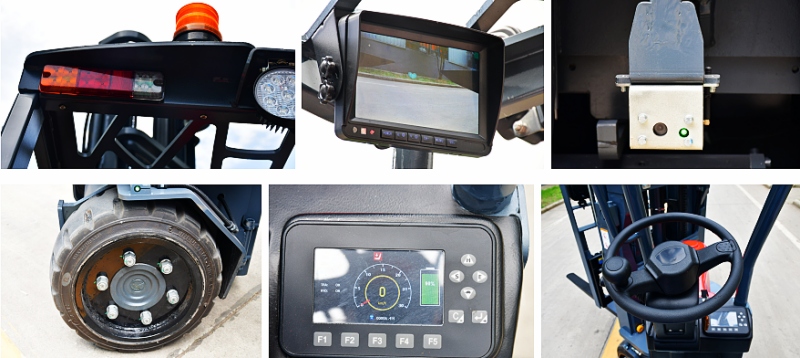

Details:
Feature:
1.Adopting new concepts and novel streamlined design, the visual effect is greatly improved. The articulated forklift has a compact and simple appearance and is a reliable choice.
2.Adopting a wide-view mast design with wireless camera and video display.
3.The internationally advanced MOSFET AC controller system enables the forklift to control operation, steering, lifting and tilting through computer programs.
4.The large-angle full-open cover and removable rear door panel facilitate battery replacement and maintenance.
5.The AC motor has no maintenance cost such as replacing carbon brushes.
6.The high-efficiency AC power system, complete protection functions, speed sensors and temperature sensors can ensure the reliability of operation and extend the service life.
7.The standard OPS function greatly improves safety.
8.Equipped with high-brightness laser lights, operators can have a reliable reference when stacking goods in very narrow aisles.

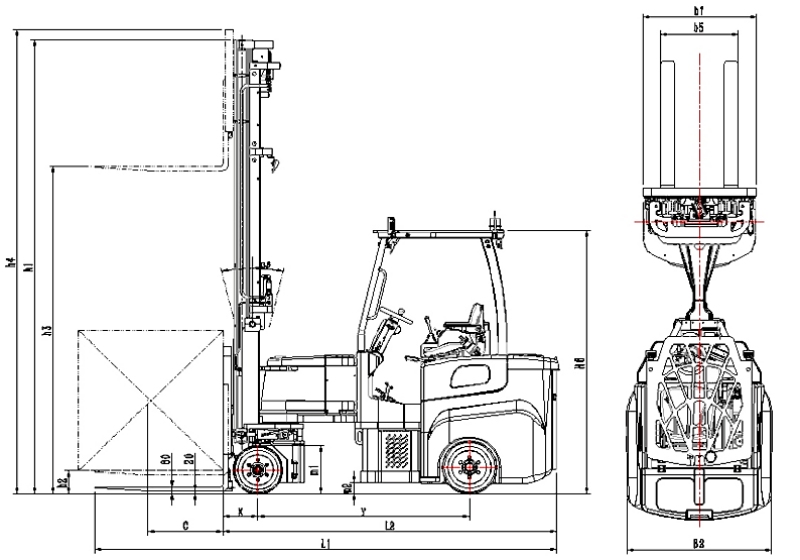

Specification:
| Model | NVJ20 | |
| Capacity | kg | 2000 |
| Power | Battery | |
| Operation type | Seated | |
| Load Center | mm | 600 |
| Wheelbase | mm | 1720 |
| Sevice weight | kg | 7200 |
| Battery | V/Ah | 80/500 |
| Max. lifting height | mm | 12500 |
| Vehicle body length | mm | 3830 |
| Vehicle body width | mm | 1400 |
| Fork size | mm |
1100/100/50
|
| Drive motor | kw | 18.5 |

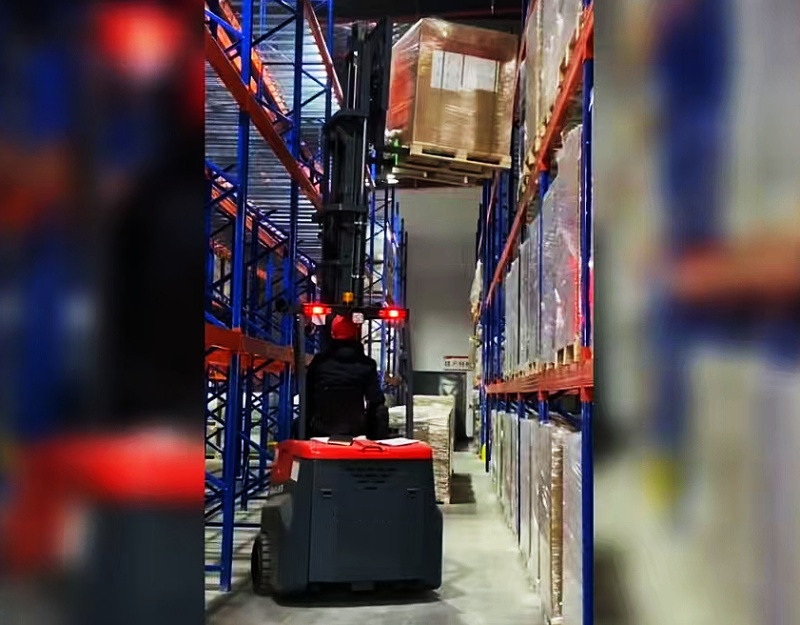

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
