The man up very narrow aisle forklift can realize rotation, side shifting, cargo loading, unloading, stacking and storage at three positions, left, right and front, without turning the body; high-strength German Krupp imported mast steel, high strength, light weight and good workmanship; smooth lifting operation and good operating comfort; the center of gravity of the vehicle is greatly reduced; lifting graded control, main mast and auxiliary mast operate independently; fully imported AC controller, operating handle, instrument; electro-hydraulic proportional hydraulic control unit; two freely selectable driving modes: driving and standing driving.
Item No :
NVMOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Green/Red/Yellow/CustomizedLead Time :
50-60daysWeight :

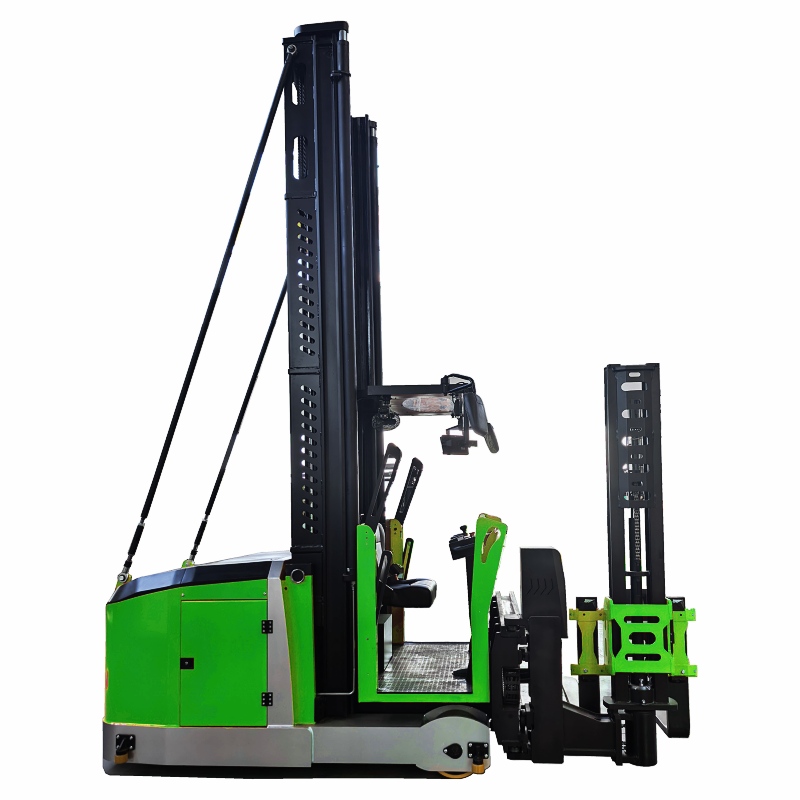

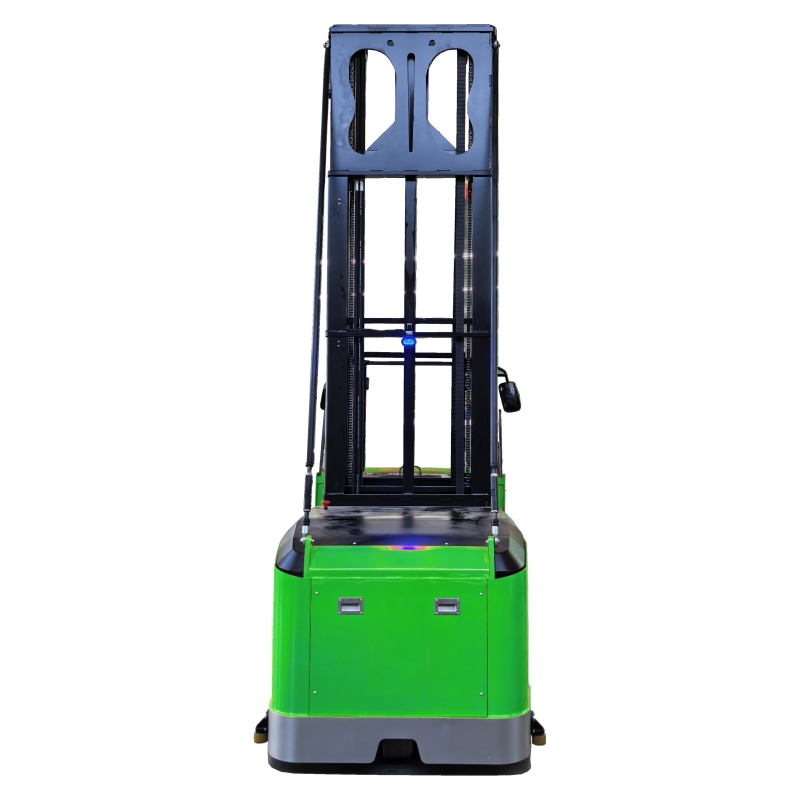

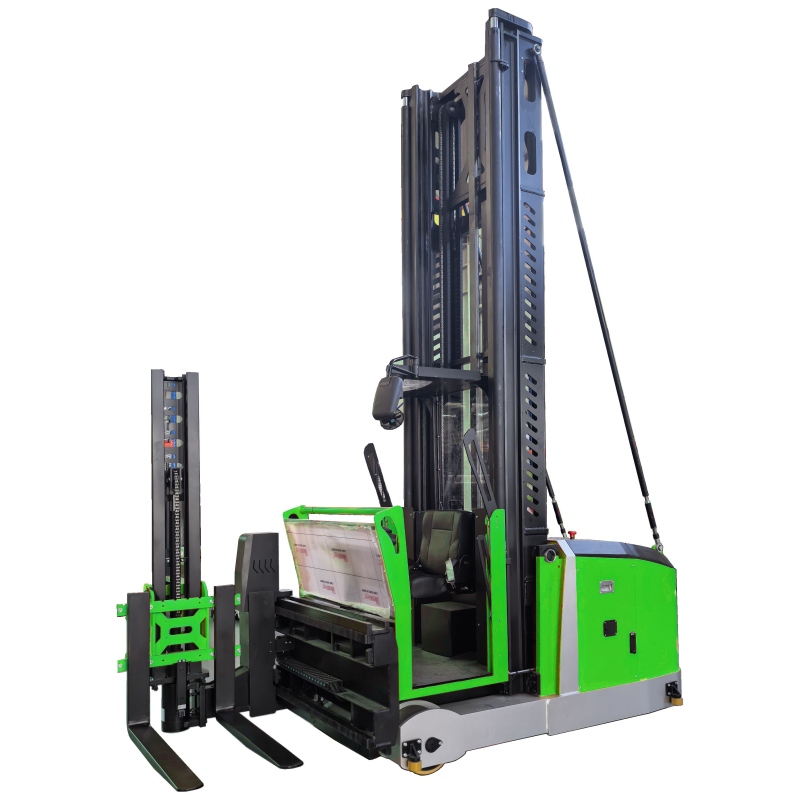

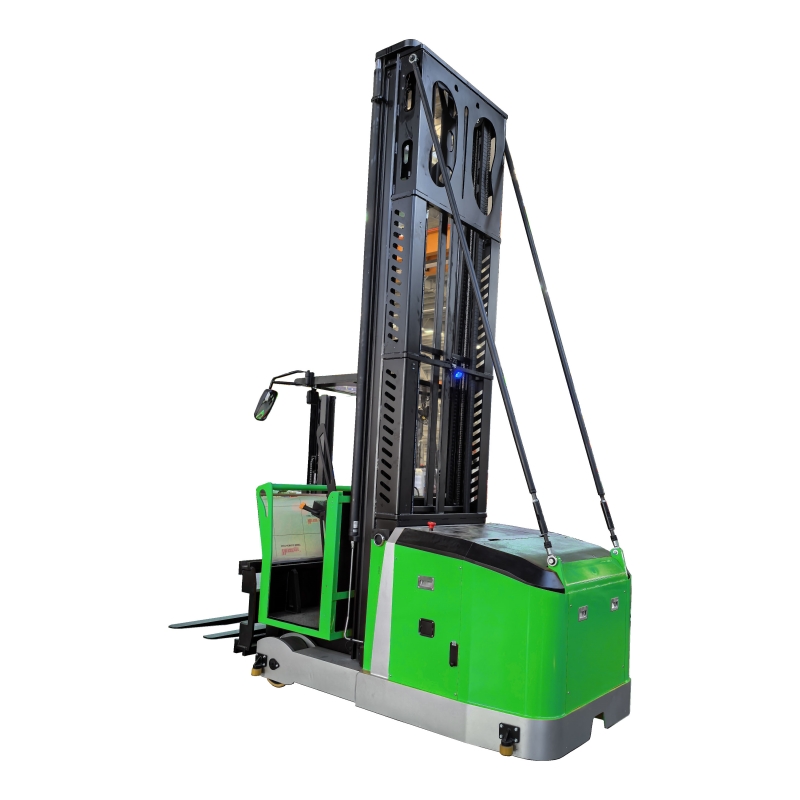

8800kgMan up electric very narrow aisle forklift
The man up very narrow aisle forklift is the latest generation of electric forkhead high-position stacking and picking forklift. Its maximum load is 1600kg and the maximum height is 14500mm. Patented three-way electric forkhead technology, three-way AC control system and stable and efficient electromagnetic wire guiding technology; efficient energy recovery system, adaptive uneven ground, comfortable operating environment, multiple active protection of the whole vehicle, safer operation, wide application scenarios and rich optional configurations. The same pallet position, smaller storage space, the same storage space, more pallet positions, maximize the utilization of storage space.

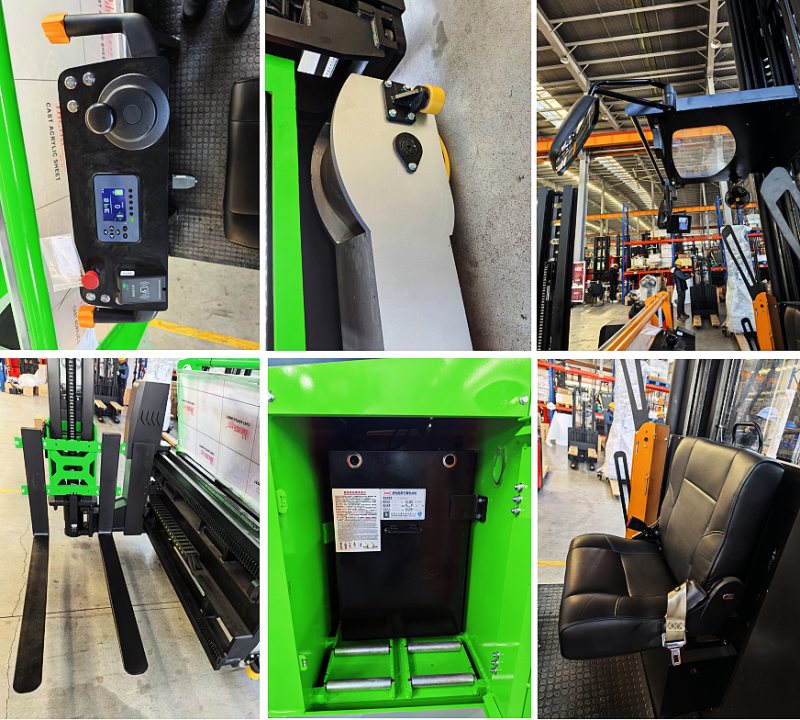

Details:
Feature:
1.Without turning the body, it can rotate, move sideways, and load, unload, and stack cargo at three positions: left, right, and front.
2.High-strength mast steel imported from Krupp Germany, with high strength, light weight and good workmanship; the lifting operation is smooth and the operation comfort is good; the center of gravity of the vehicle is greatly reduced.
3.Lifting classification control, main mast and auxiliary mast operate independently.
4.Brand AC controllers, operating handles, instruments.
5.Electro-hydraulic proportional hydraulic control unit.

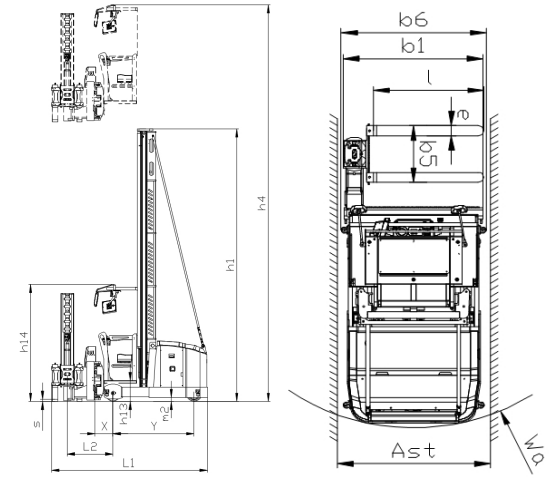

Specification:
| Model | NVM16 | |
| Capacity | kg | 1600 |
| Power | Battery | |
| Operation type | Seated | |
| Load Center | mm | 600 |
| Wheelbase | mm | 2250 |
| Sevice weight | kg | 8800 |
| Battery | V/Ah | 80/700 |
| Max. lifting height | mm | 14500 |
| Vehicle body length | mm | 4010 |
| Vehicle body width | mm | 1505 |
| Fork size | mm |
45*125*1220
|
| Drive motor | kw | 8 |

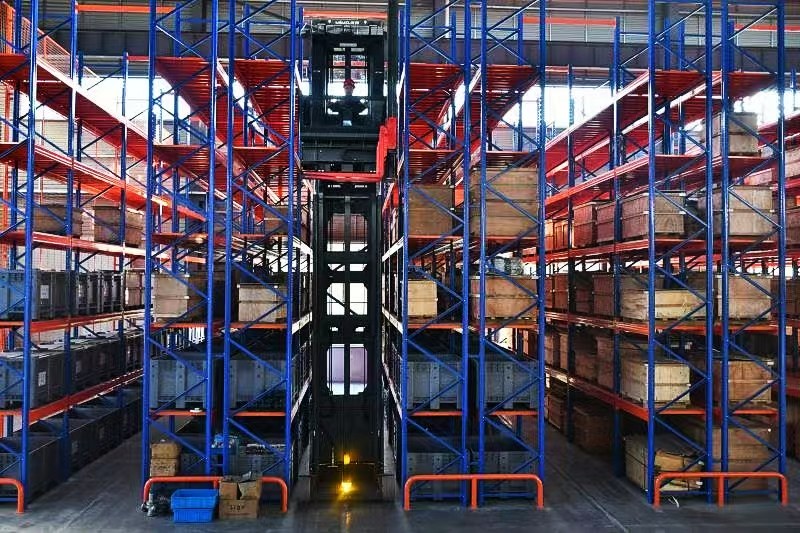

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics

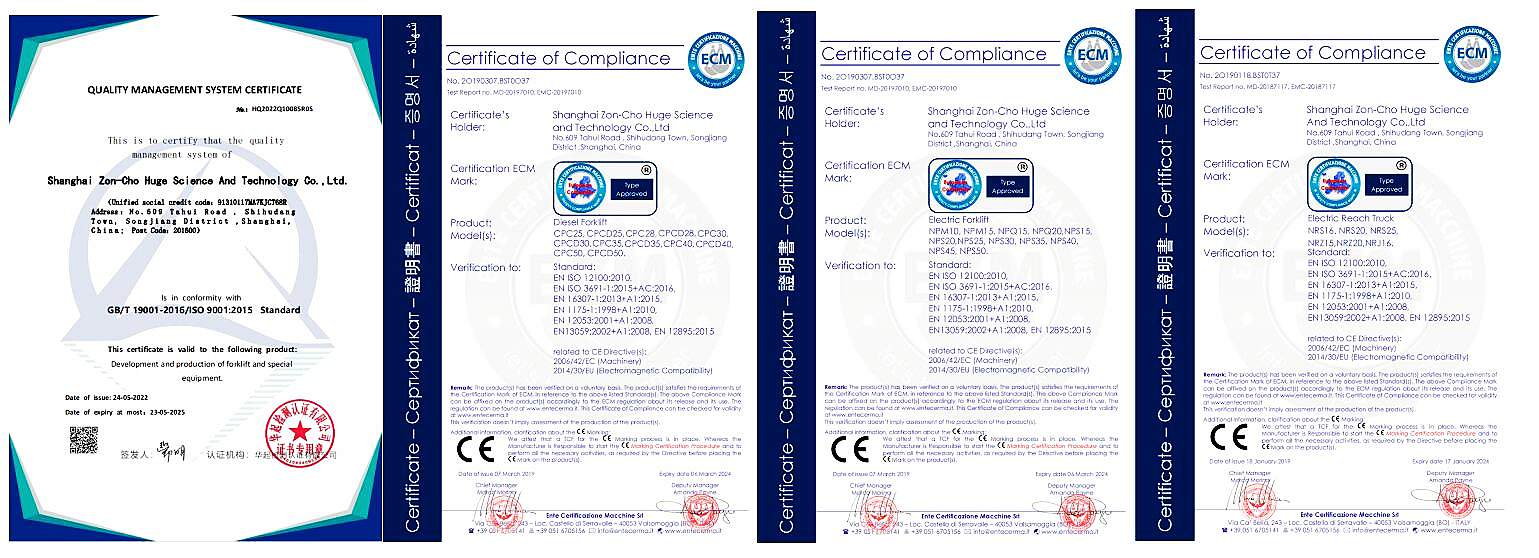

Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
