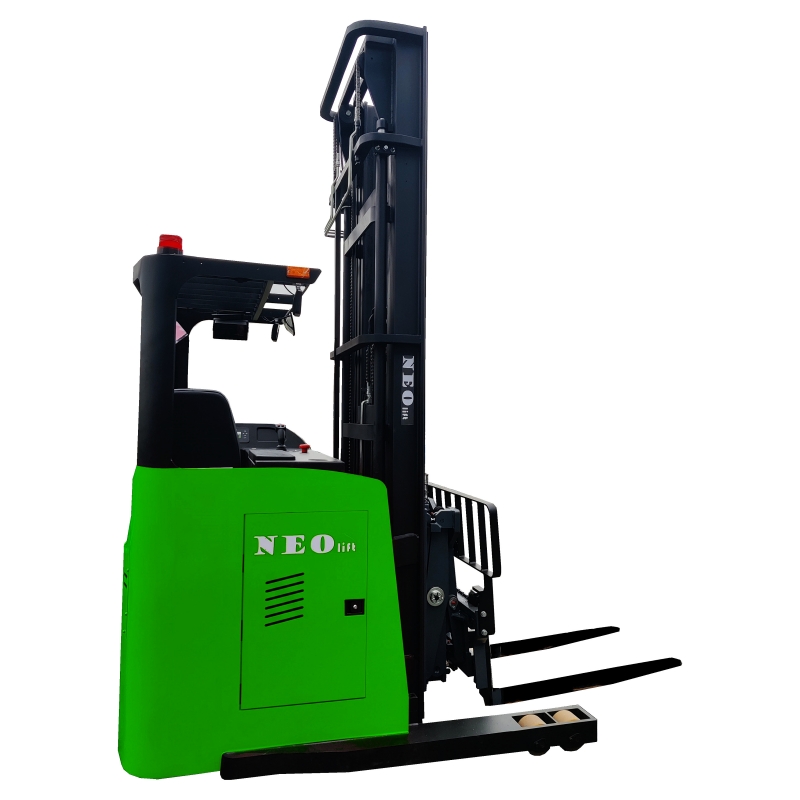

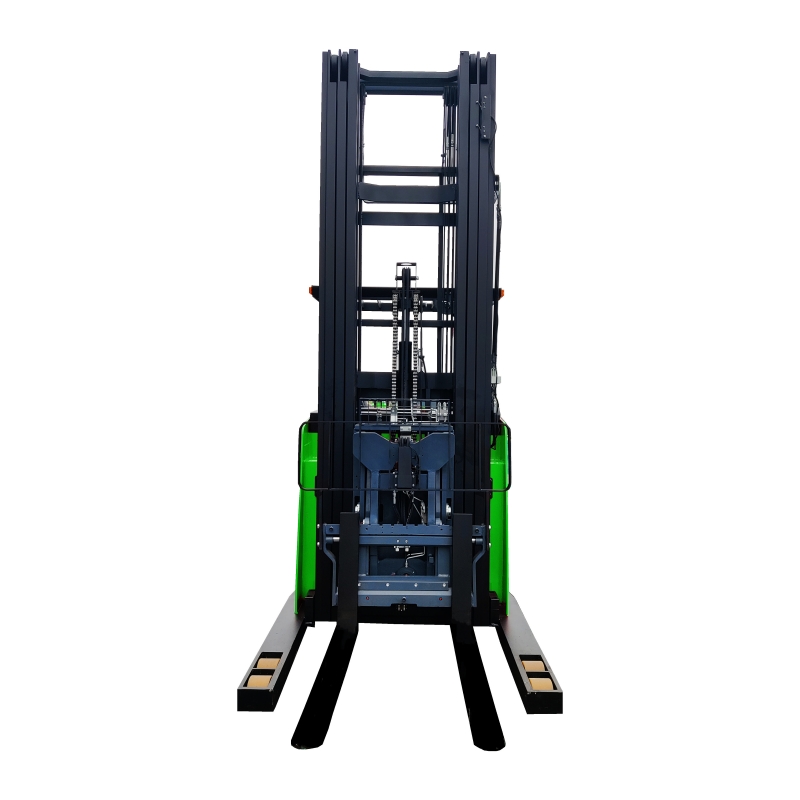

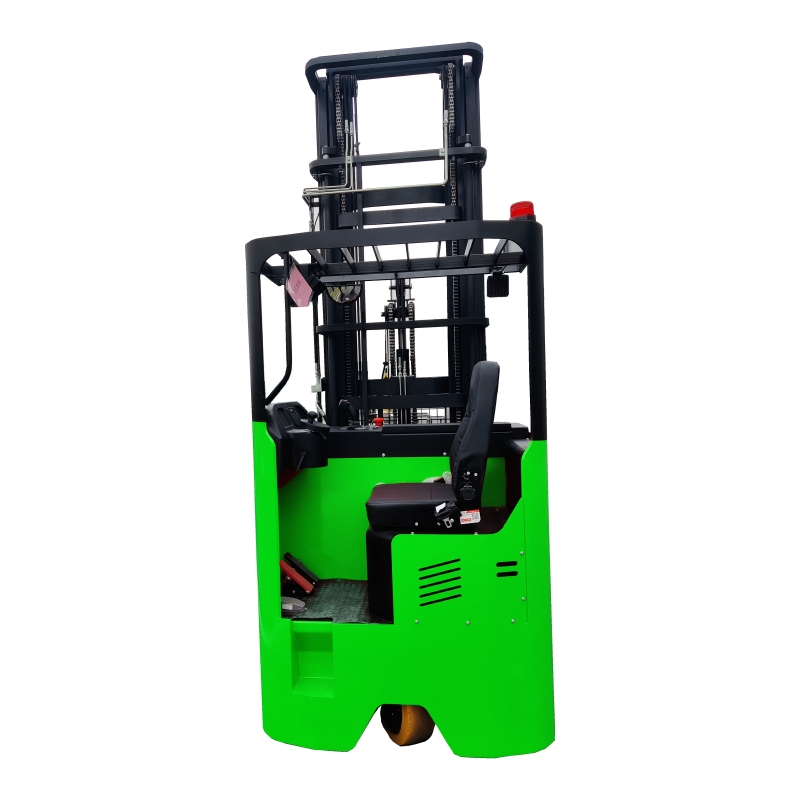

Seated double deep scissor reach truck

Seated double deep scissor reach truck

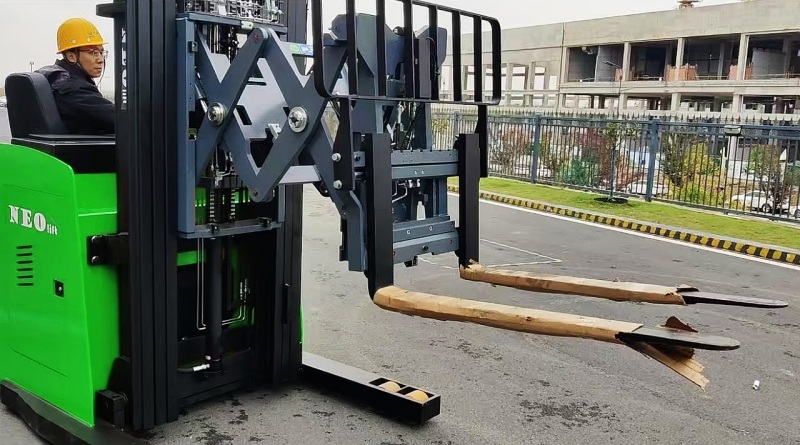

The seated double deep scissor reach truck has a load capacity of 1.5 tons and a lifting height of 3.0-12.0m. The imported control system is safe and reliable to operate. The gantry system is made of imported steel from Germany, which makes the gantry more stable, more reliable, and has a larger residual load at high positions. The suspended high-configuration seat is comfortable and durable, which can effectively reduce driving fatigue. Large-capacity lead-acid battery, optional large-capacity lithium battery, safe and environmentally friendly, long battery life. The scissor fork design has a telescopic stroke of 1200mm, which effectively reduces the channel width requirements and can effectively increase the storage capacity rate. Mainly due to high-density warehousing industries, such as hardware, fisheries, food industry and logistics industry, explosion-proof, cold storage and other non-standard customization can be provided according to customer needs.

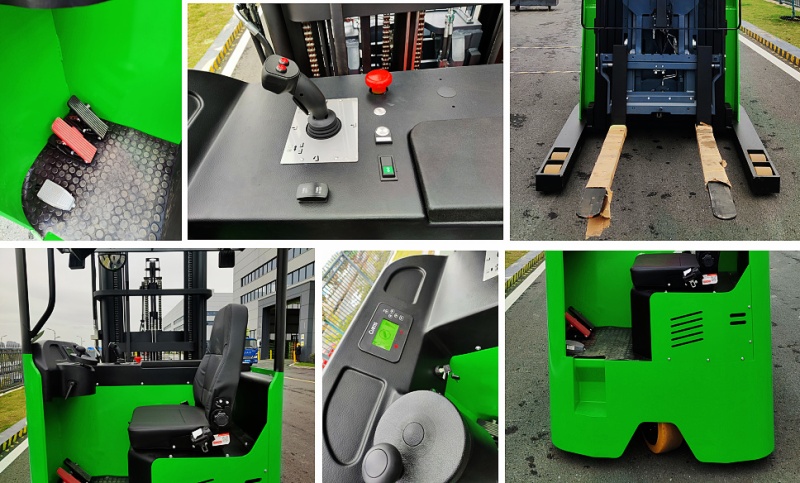

Details:

Feature:

1. Standard double scissor front extension arm, through the scissor fork telescopic mechanism to achieve the forward and backward movement of goods, the fork is extended like a counterbalanced stacker, easily handle non-standard pallets, closed pallets, closed shelves;

2. When the fork is retracted, it is like a wide fork leg stacker, which can be flexibly operated in narrow passages.

3. The telescopic stroke is 1200mm, and the maximum pickup depth can reach 1500mm.

4. Equipped with a full AC drive system, it has the characteristics of small size, light weight, high efficiency, maintenance-free.

5. Eliminate the trouble of replacing carbon brushes of DC motors, and no more maintenance and maintenance is required.

Specification:

Application:

1.Food

2.Medical

3.Electronics

4.Hardware

5.Chemical

6.Logistics

Certificate:

Why choose us?

1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.

2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.

3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.

4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.

5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.

6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
