The NVS series of three-way pallet stacker can make better use of the space, equipment and manpower in the warehouse; its excellent flexibility and high working efficiency can meet your various needs in warehousing work.It has a compact vehicle design, can operate in narrow aisles, and is flexible and accurate in operation, mast increasing the utilization rate and storage capacity of the warehouse.
Item No :
NVSOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
40-50daysWeight :

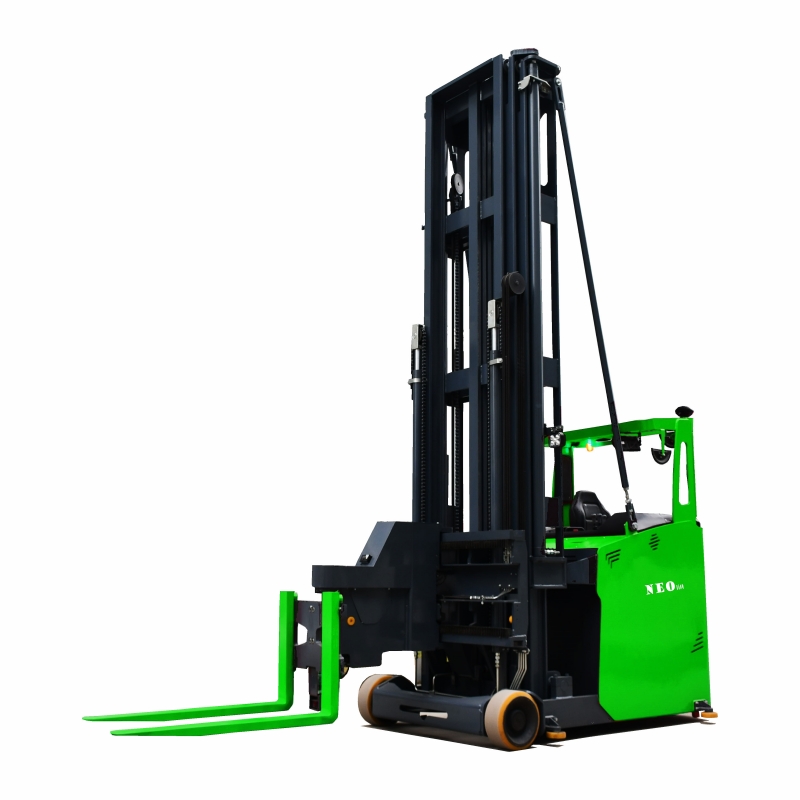

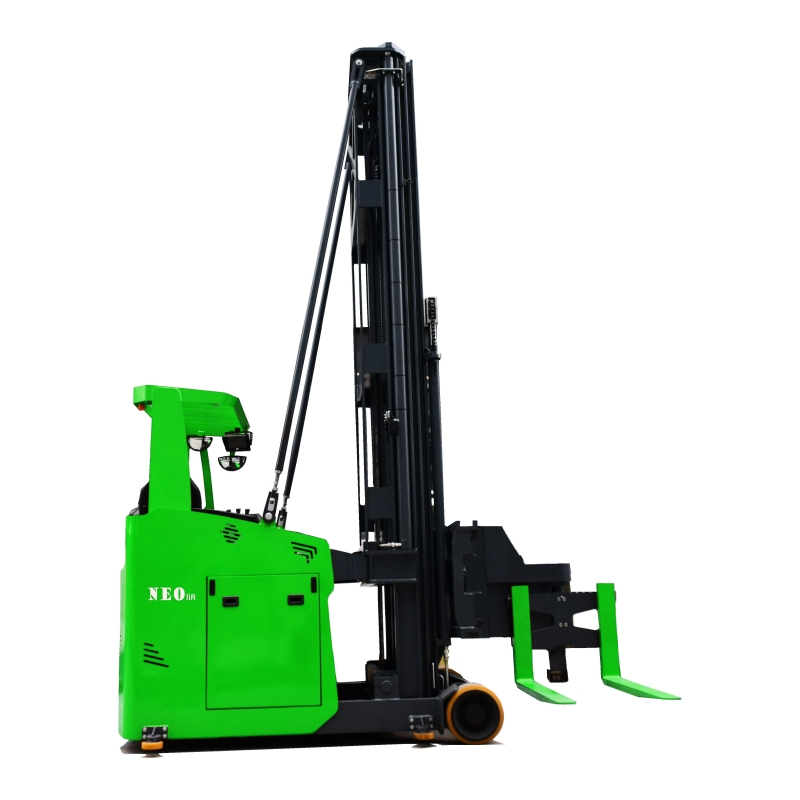

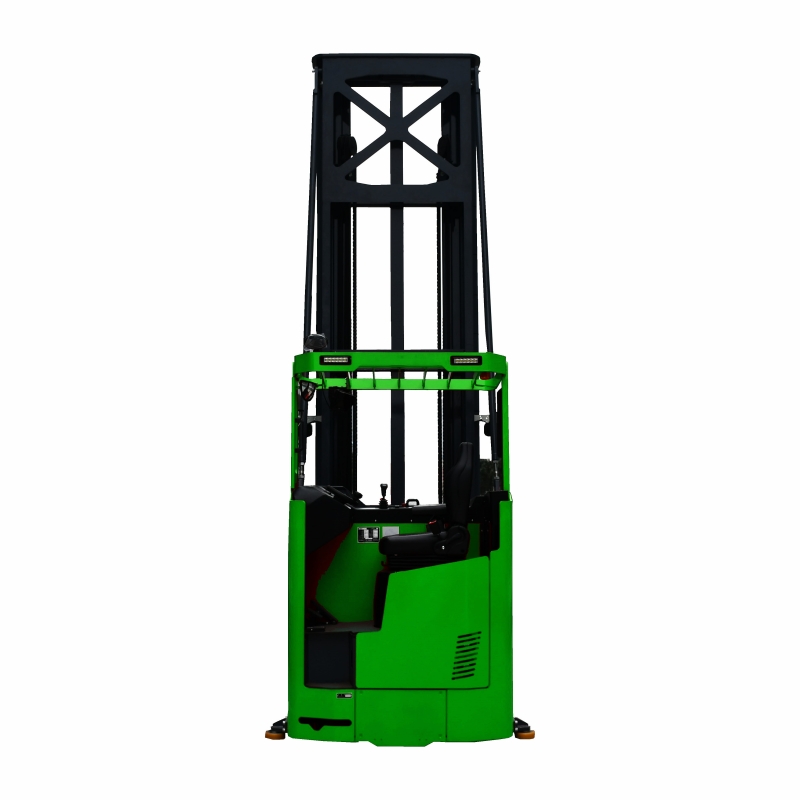

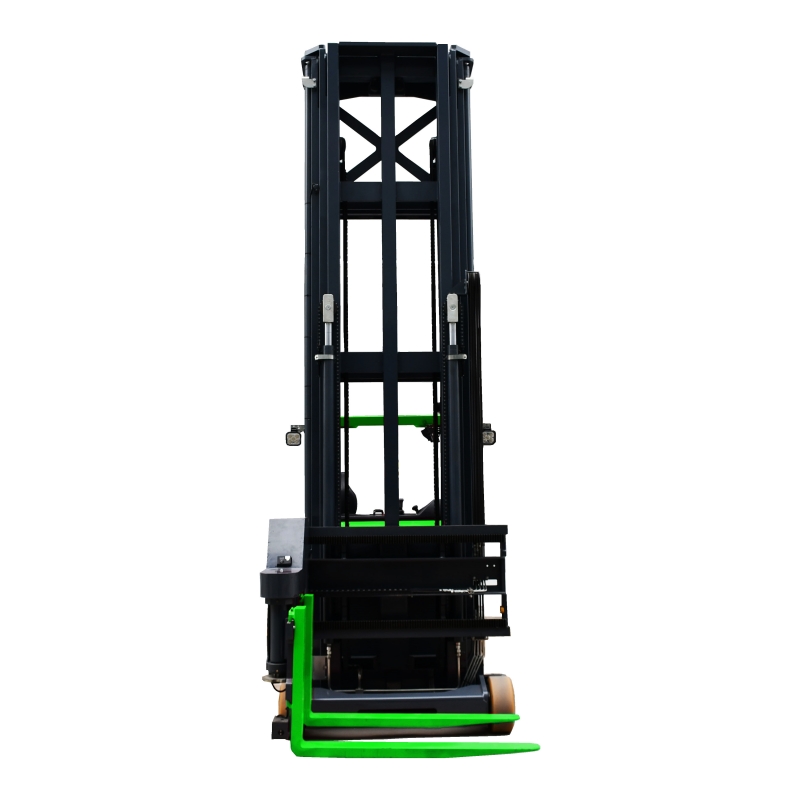

6900kgSeated electric very narrow aisle forklift
The seated electric very narrow aisle forklift has a unique fork rotation and side shift mechanism, which can realize 180° rotation of the fork and left and right side shift stacking. The rated load is 1.6 tons, and the lifting height range is 3.0 meters to 12.0 meters. It is widely used in logistics, medicine, food, and low-temperature cold storage on-site high-level narrow aisle stacking, loading and unloading, and short-distance transportation operations. It is an ideal machine for high-position warehousing, increasing storage capacity, and improving labor efficiency.

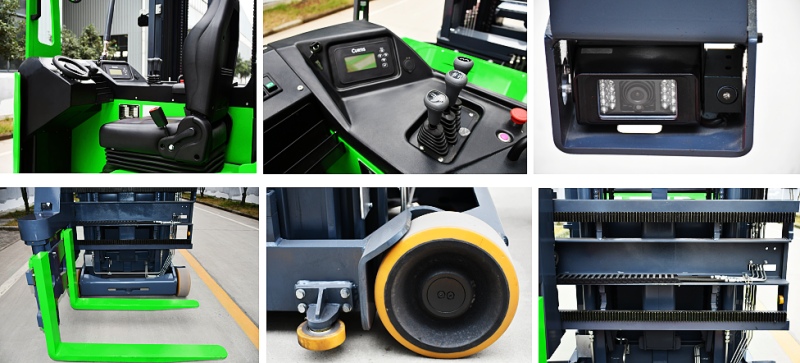

Details:
Feature:
1.48-volt full AC system, standard pure electric steering;
2.Imported 3H channel steel gantry structure, 6.5m without loss of load;
3.Suspended seat, with OPS function;
4.All-wheel braking, driving regenerative braking, front wheel hydraulic drum braking, parking electromagnetic braking;
5.Drive wheel angle display;
6.Rotation side shift interlock function;
7.All series are standard with high-definition wireless video system;
8.Side pull battery;

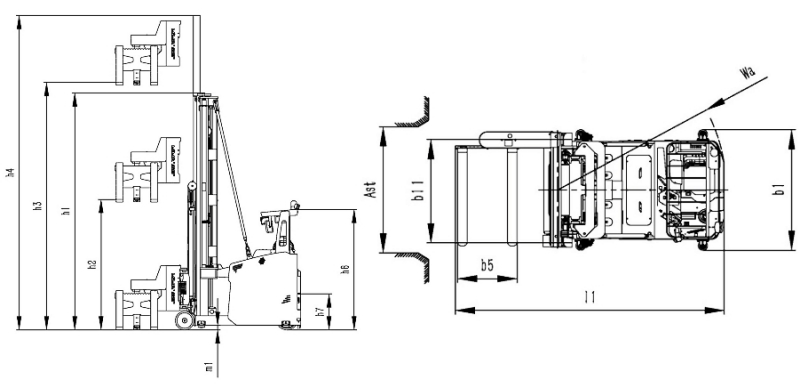

Specification:
| Model | NVS16 | |
| Capacity | kg | 1600 |
| Power | Battery | |
| Operation type | Seated | |
| Load Center | mm | 500 |
| Wheelbase | mm | 1900 |
| Sevice weight | kg | 6900 |
| Battery | V/Ah | 48/400 |
| Max. lifting height | mm | 12000 |
| Vehicle body length | mm | 3450 |
| Vehicle body width | mm | 1550 |
| Fork size | mm |
1200/125/50
|
| Drive motor | kw | 7 |

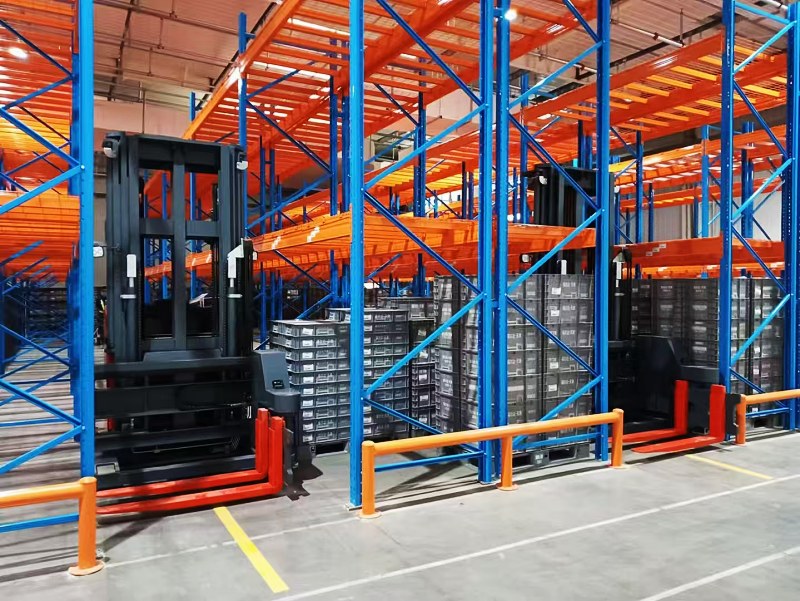

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
