Stand on very narrow aisle forklift has a unique fork rotation and side shift mechanism, which can realize 180° rotation of the fork and left and right side shift stacking. It is widely used in logistics, medicine, food, and low-temperature cold storage on-site high-level narrow aisle stacking, loading and unloading, and short-distance transportation operations. It is an ideal machine for achieving high-position warehousing, increasing storage capacity, and improving labor efficiency.
Item No :
NVZOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
40-50daysWeight :

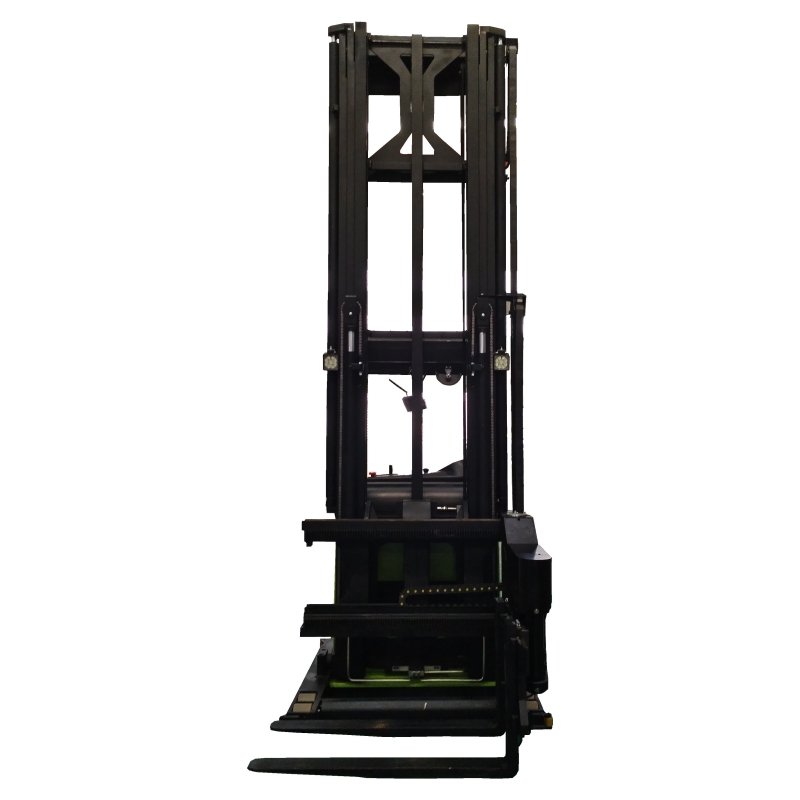

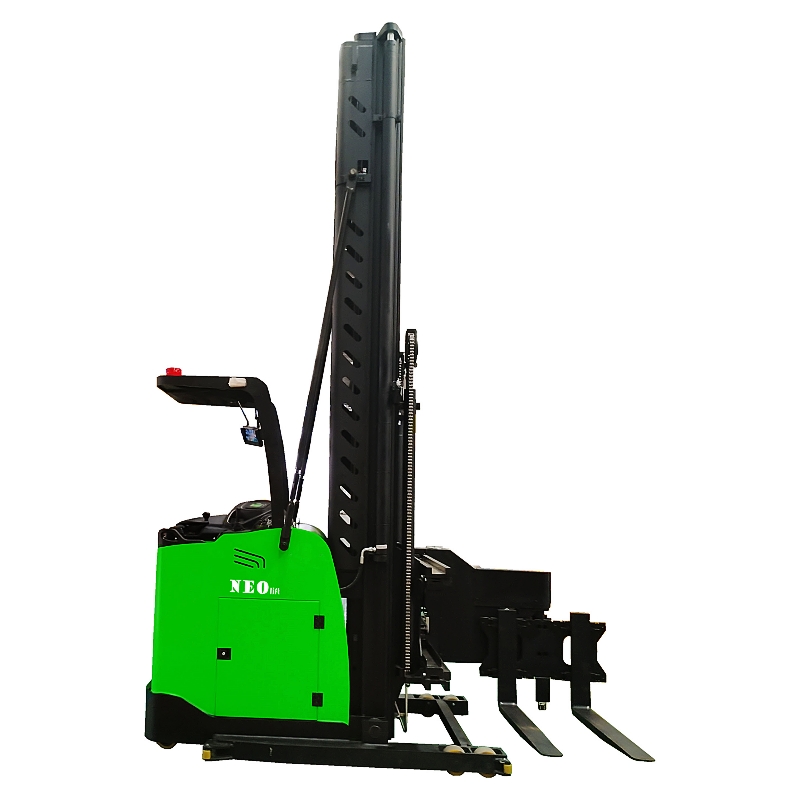

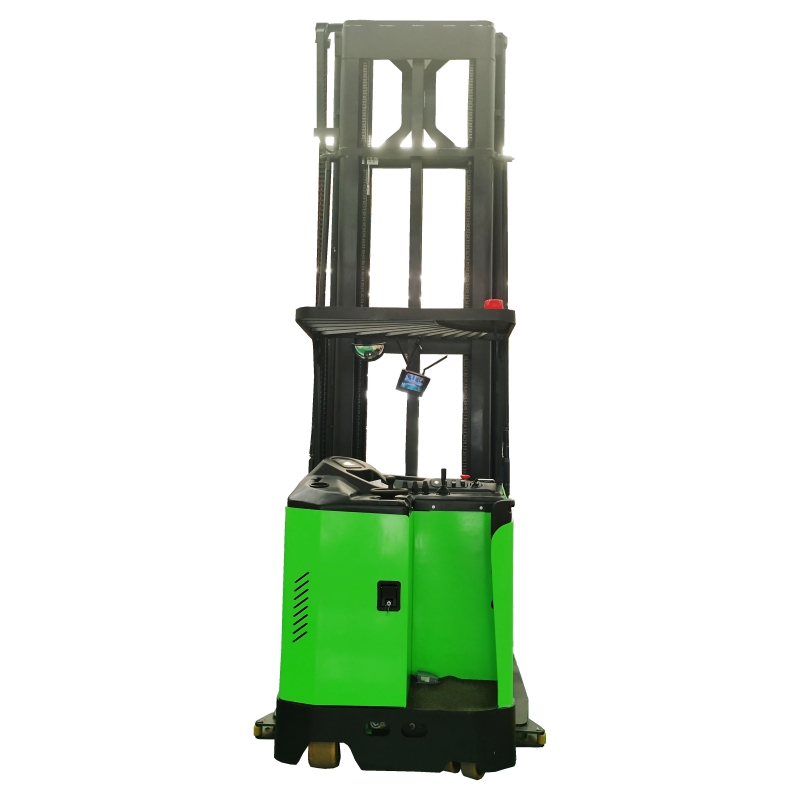

6500kgStand on electric very narrow aisle forklift
Stand on very narrow aisle forklift,rated capacity range 1.0ton to 1.6tons,lifting height range 3.0m to 10.0m,it is a multifunctional and highly adaptable vehicle that meets the requirements of narrow aisles, wide aisles and platforms. The functions of the forklift such as raising, lowering, moving left, moving right, rotating left and rotating right are all completed in manual mode. In automatic mode, the stand-on three-way electric forklift can realize operations such as cargo storage and retrieval preparation and height determination through the human-machine interface. Under the condition of meeting the longitudinal positioning, it can also realize automatic storage and retrieval.

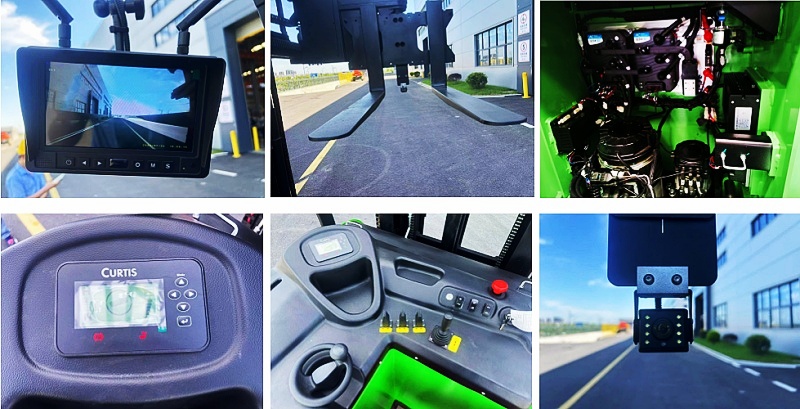

Details:
Feature:
1.Unique fork head rotating side shift mechanism and strong mast design, small channel requirements;
2.Curtis controller, more stable full AC system, energy saving and environmental protection;
3.Maintenance-free full AC drive system, motor maintenance-free, long life, low noise, low maintenance and use cost.
4.Standard electric power steering, clear road feel, easy and comfortable operation, reliable;
5.Large cross-section mast structure design ensures mast rigidity and improves load performance, very suitable for high cargo storage;
6.Imported hydraulic parts ensure the stability and reliability of the hydraulic system;
7.Side-pull battery, convenient and quick charging and maintenance.
8.Magnetic navigation/laser navigation AGV can be customized.

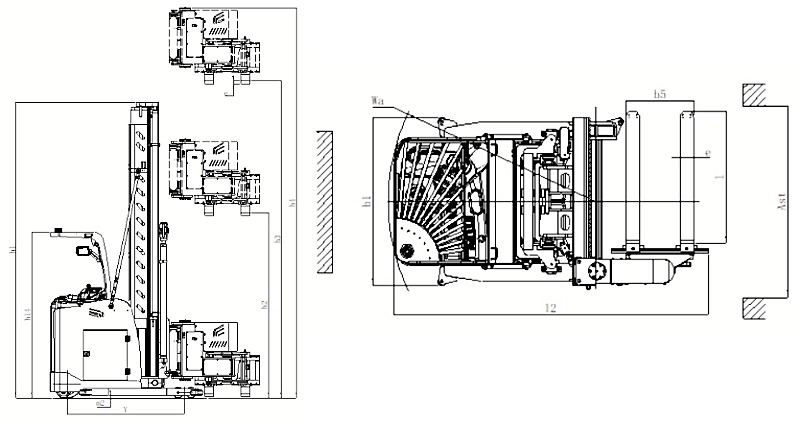

Specification:
| Model | NVZ10/12/15/16 | |
| Capacity | kg | 1000-1600 |
| Power | Battery | |
| Operation type | Stand on | |
| Load Center | mm | 500 |
| Wheelbase | mm | 1700 |
| Sevice weight | kg | 5100-6900 |
| Battery | V/Ah | 48/400 |
| Max. lifting height | mm | 10000 |
| Vehicle body length | mm | 3065 |
| Vehicle body width | mm | 1550 |
| Fork size | mm |
45/125/1200
|
| Drive motor | kw | 6.5 |

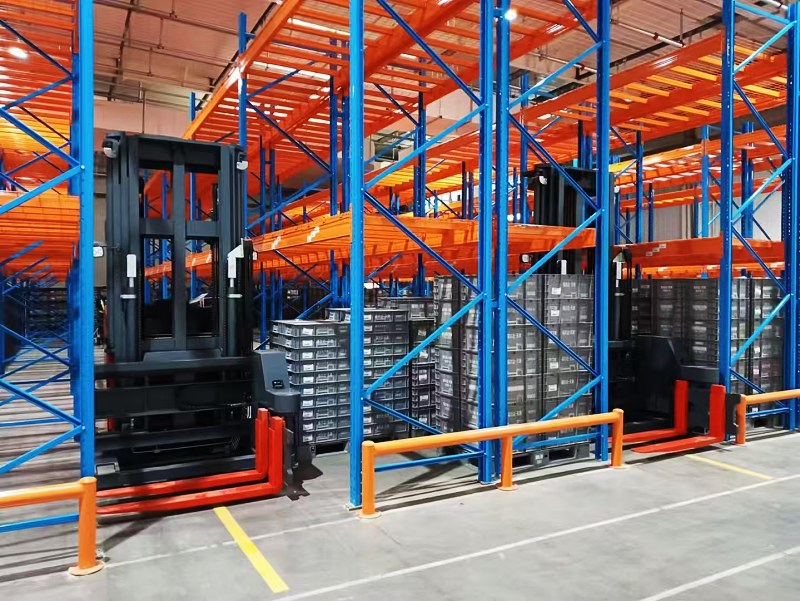

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
