This product is a combination of a three-way forklift and a pallet stacker, which fully integrates the advantages of both. At the same time, the price is more competitive and can meet customers' needs for narrow aisle stacking. This product has a load capacity of 1000-1500kg and a lifting height of 3000-6000mm, and is mainly suitable for narrow aisle stacking operations.
Item No :
NSVOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
20-30daysWeight :

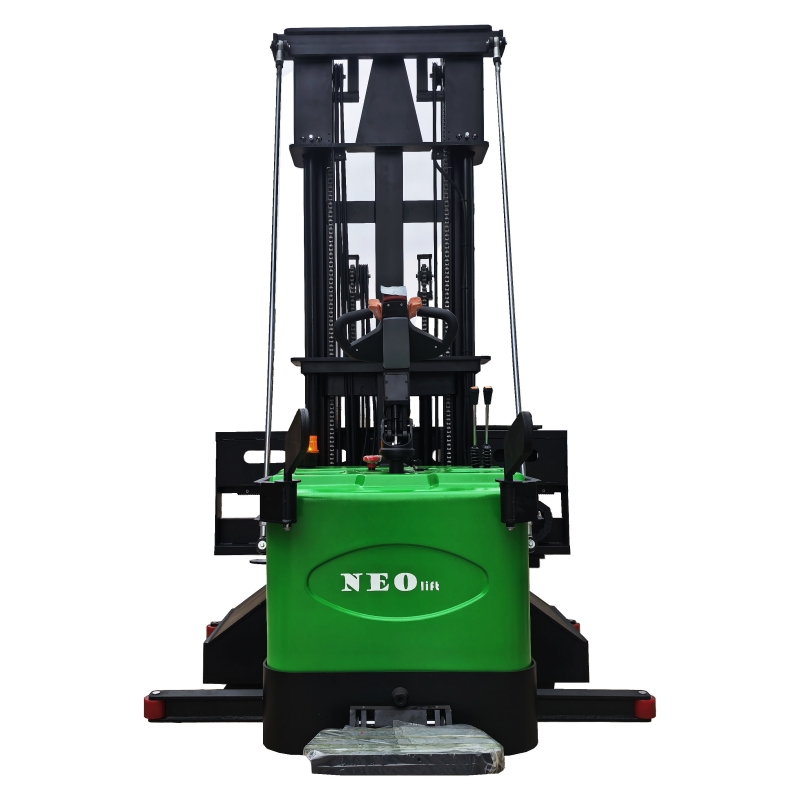

2250kgStand On Very Narrow Asile Statcker Truck

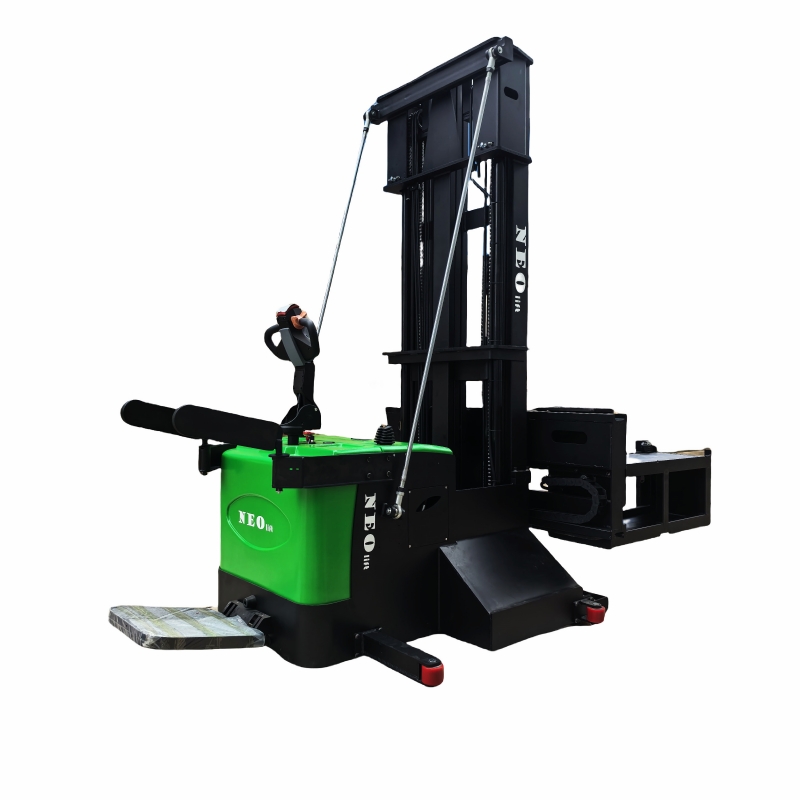

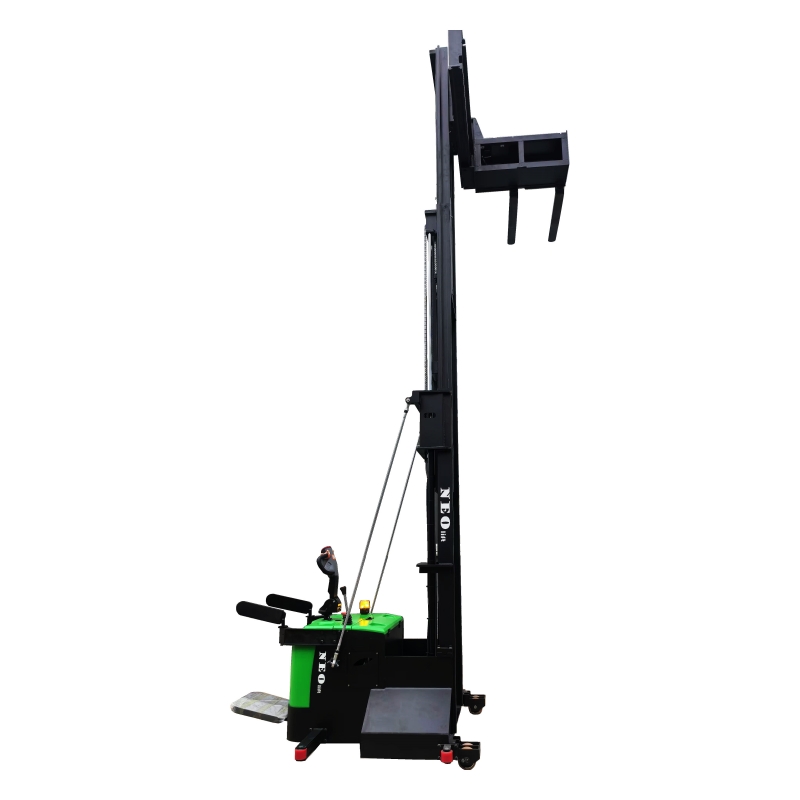

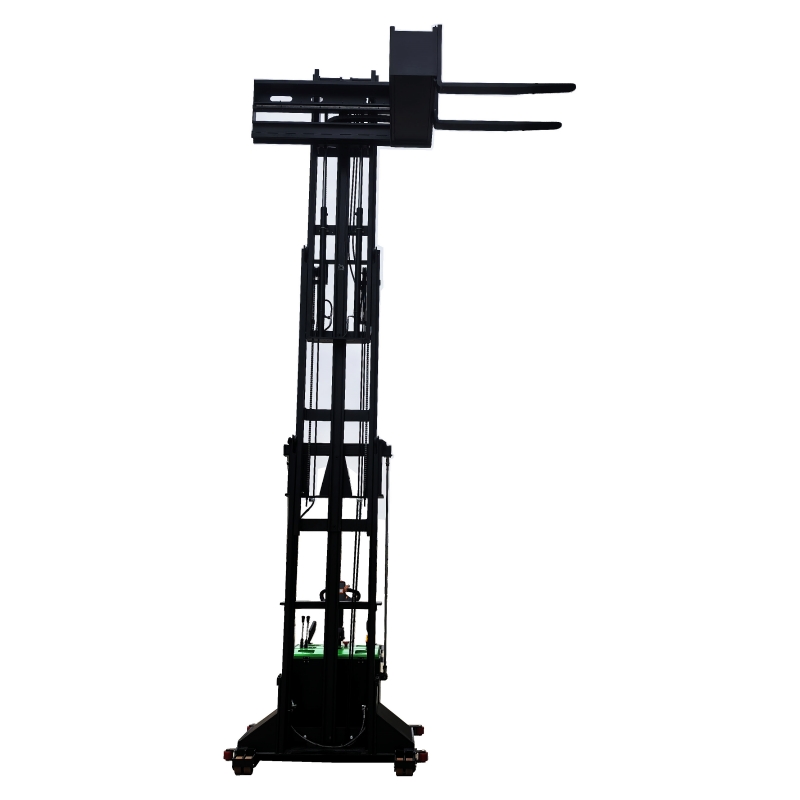

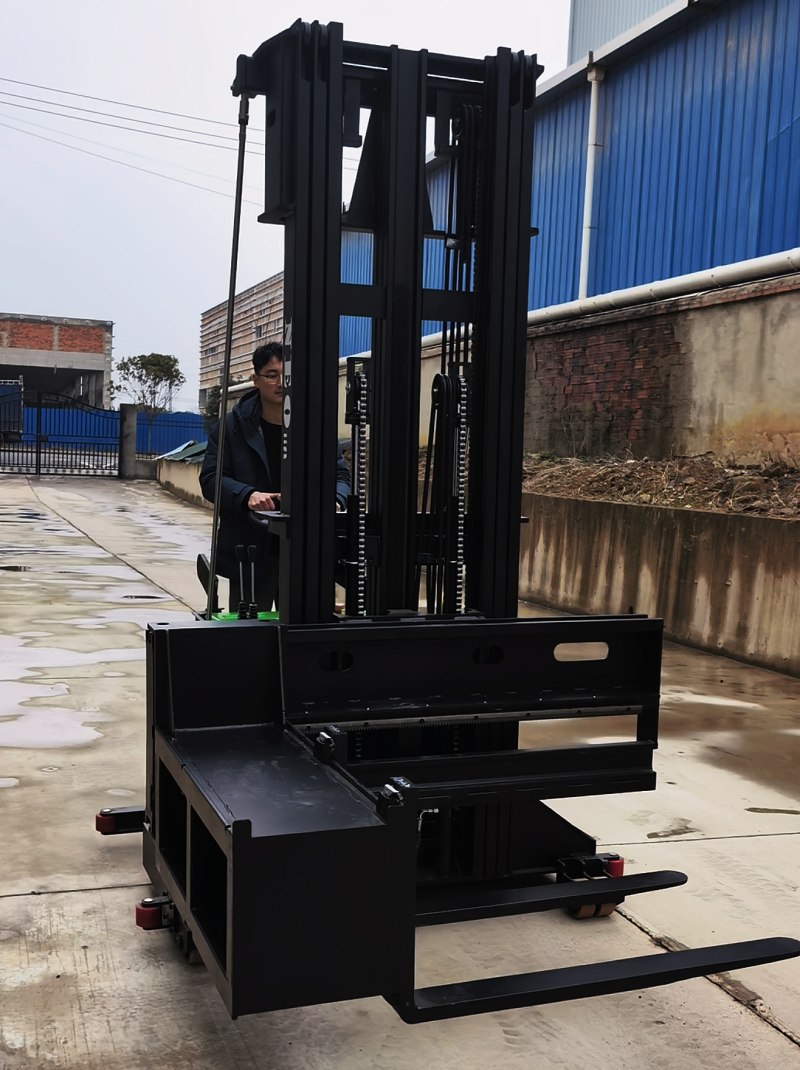

Stand On VNA Statcker Truck combines the advantages of a three-way forklift and a pallet stacker, with a more competitive price to meet customers' needs for narrow aisle stacking. The vehicle is electrically driven and electrically lifted, and the forks can move left and right for picking up and stacking, without rotating the forklift. The pedal plus safety arm and emergency stop button ensure safe operation. This product has a load capacity of 1000-1500kg and a lifting height of 3000-6000mm, and is mainly suitable for narrow aisle stacking operations.

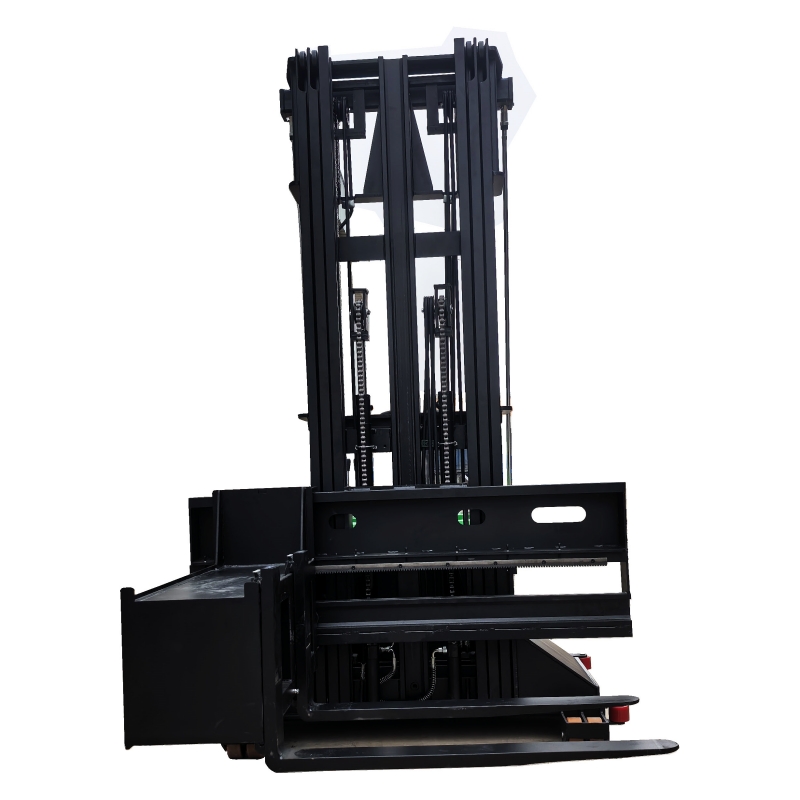

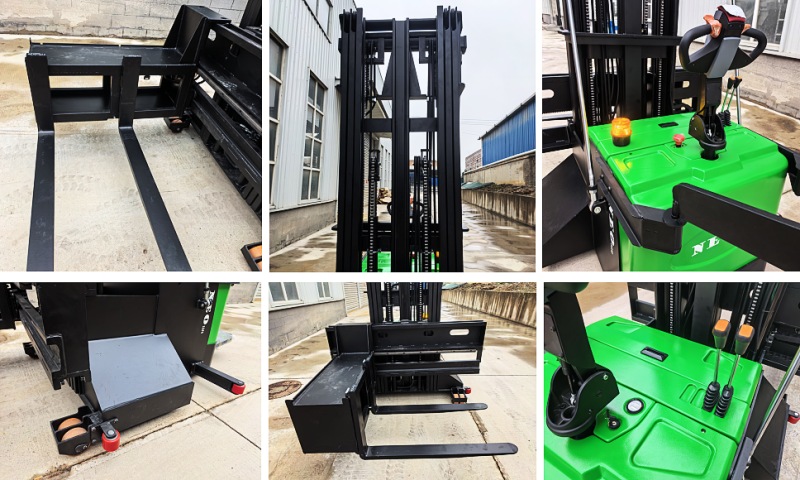

Details:
Feature:
1.Rated load 1000-1500KG, lifting height up to 6m.
2.Fork length 1070mm, can be customized according to customer needs.
3.Fork lateral movement stroke ≥1100.
4.2-way hydraulic valve (respectively control: up/down, fork left/right).
5.The fork can be installed in the left direction, and can be installed in the right direction after disassembly.
6.Forks can move right to left.
7.EPS curve automatic deceleration design: the larger the steering angle, the slower the speed, linear deceleration without setbacks, descent buffer design: cylinder with descent buffer valve.
8.Multiple braking mode safety guarantee: electromagnetic brake, regenerative brake, ramp anti-slip brake, emergency power-off automatic brake, emergency reverse brake, multiple safety guarantees.

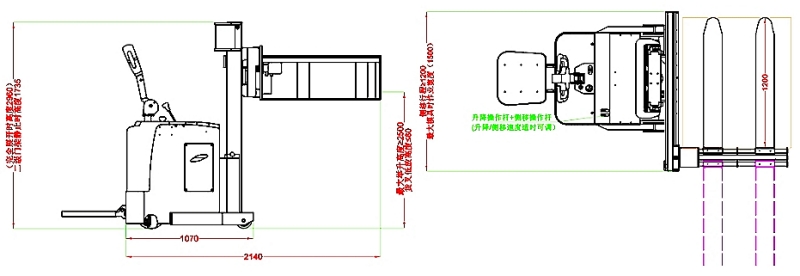

Specification:
| Model | NSV10/15 | |
| Capacity | kg | 1000-1500 |
| Power | Battery | |
| Operation type | Stand on | |
| Load Center | mm | 500 |
| Wheelbase | mm | 1090 |
| Sevice weight | kg | 2250 |
| Battery | V/Ah | 24/210 |
| Max. lifting height | mm | 6000 |
| Vehicle body length | mm | 2350 |
| Vehicle body width | mm | 1500 |
| Fork size | mm |
40/122/1070
|
| Drive motor | kw | 3 |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
