Stand-on reach trucks are available in 24V and 48V systems, with a rated load of 1.5-3.0 tons and a standard lifting height of 3 to 10 meters. Imported controllers are used, making the operating system more stable. Large-capacity brand lead-acid batteries are used, which are safe, reliable, powerful, more efficient, and have longer working hours. High-power brand lithium batteries can be equipped according to customer needs, which are faster to charge, safer and more efficient. Non-standard customized solutions are acceptable.
Item No :
NRZOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
Green/Red/Yellow/CustomizedShipping Port :
Shanghai/Nanjing/Qingdao/Ningbo,etcLead Time :
30-35 daysWeight :

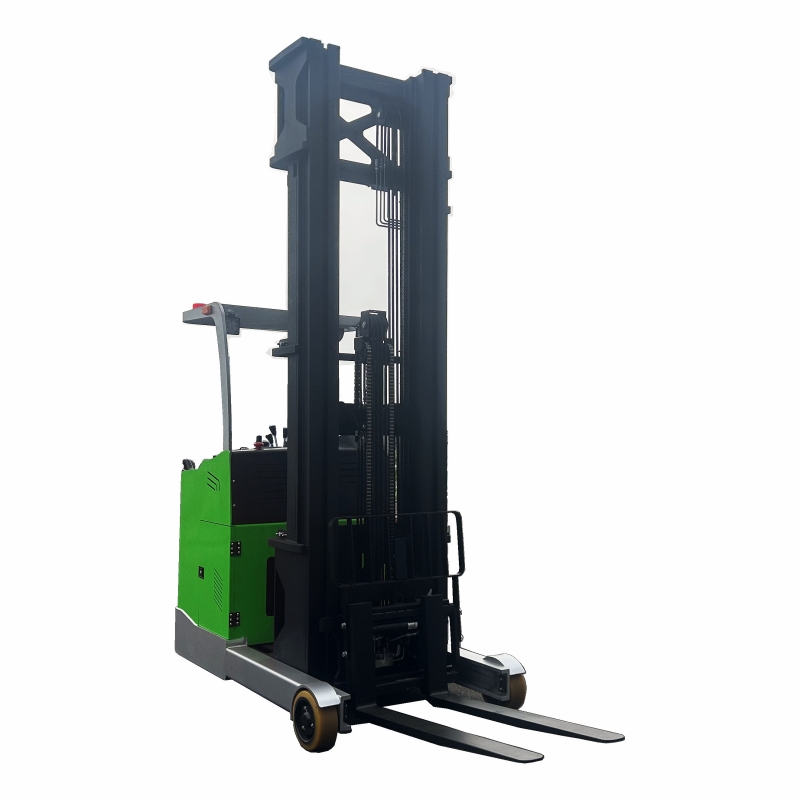

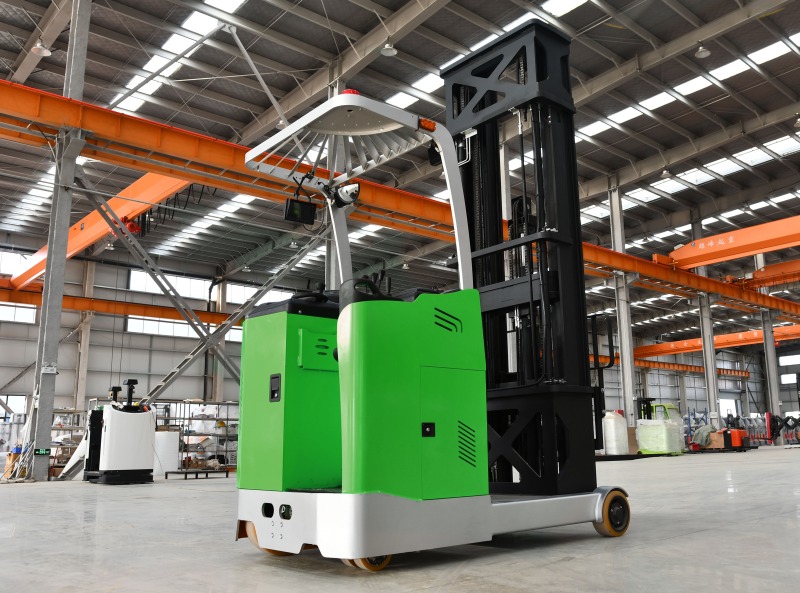

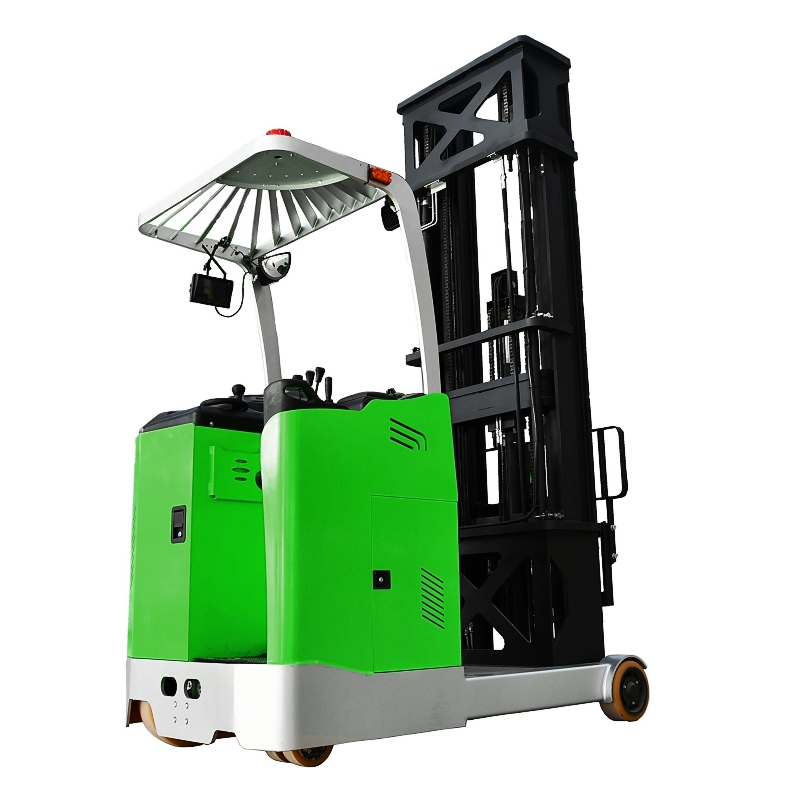

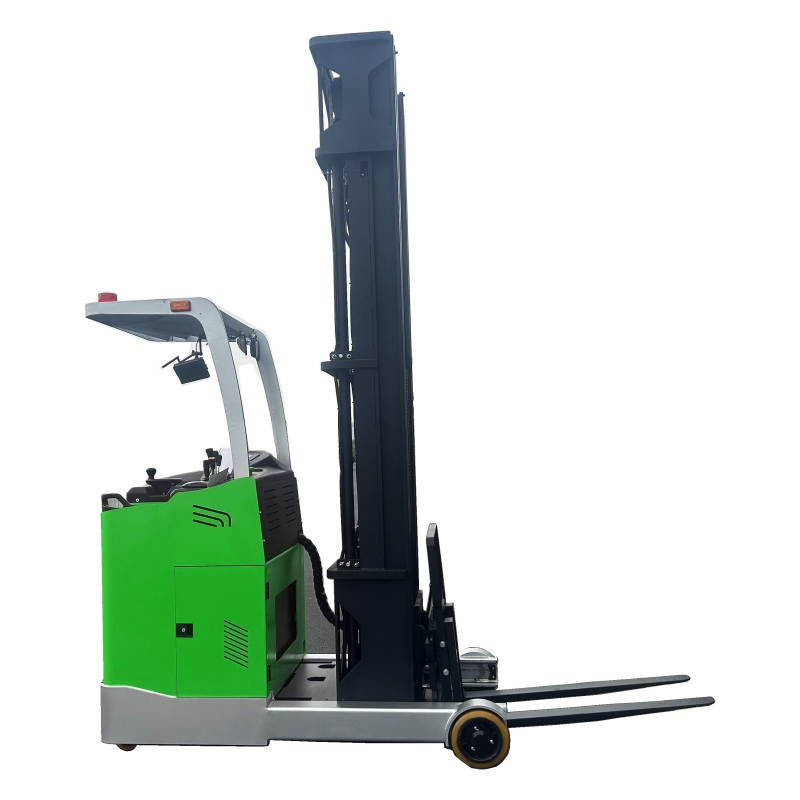

3000-4800kgWarehouse using 1.5tons to 3.0tons electric stand on reach truck

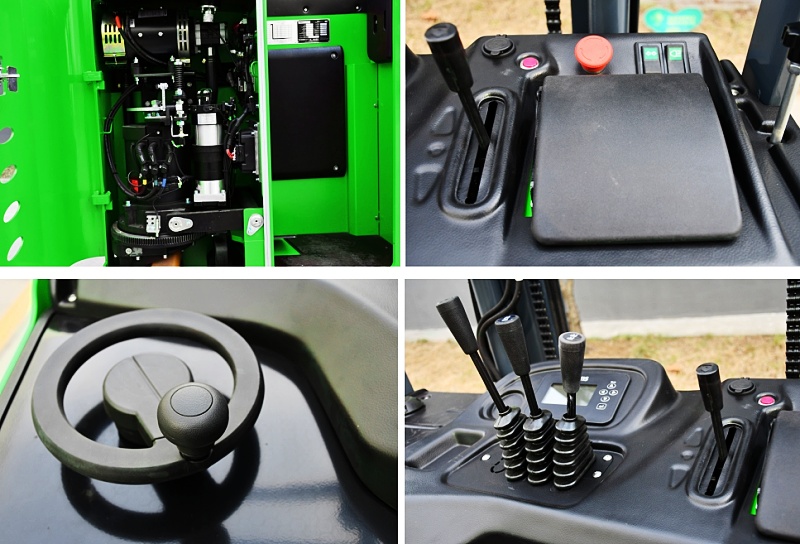

The rated load of the Electric stand on reach truck is 1.5 tons to 3.0 tons, and the lifting height is 3 meters to 10 meters. It uses an imported controller, and the operating system is more stable. Equipped with a large-capacity lead-acid battery, it is safe and reliable, powerful, more efficient, and has a longer working time. It can be equipped with a lithium battery according to customer needs, which charges faster, is safer and more efficient. The design concept is more novel, ergonomic, and more comfortable to operate. The overall body is more optimized, the size is smaller, the required channel is smaller, and the storage space is effectively saved. Non-standard customization solutions are acceptable.
1.The vehicle body is compact and the operation is more flexible. The vehicle has a low center of gravity and good stability. It is suitable for large-tonnage and high-lift cargo storage applications.
2. It has the characteristics of overall forward movement of the gantry, a small turning radius, and can ignore obstacles on the bottom of the shelf. It is suitable for any work place with limited space, and it is more convenient to pick up and put goods.
3. Equipped with a full AC drive system, it has the characteristics of strong climbing ability, maintenance-free, regenerative braking, good working stability and high efficiency, eliminating the trouble of replacing carbon brushes of DC motors, and no more maintenance and maintenance is required.
4. The forward and backward tilting function of the fork is standard to prevent the cargo from tipping over and improve the load stability.
5. The side-pull battery is suitable for multi-shift occasions, and the battery roller trolley is standard, which is more convenient to replace.
6. High-strength H-shaped gantry steel above 6.5m is not easy to deform and runs smoothly and reliably.

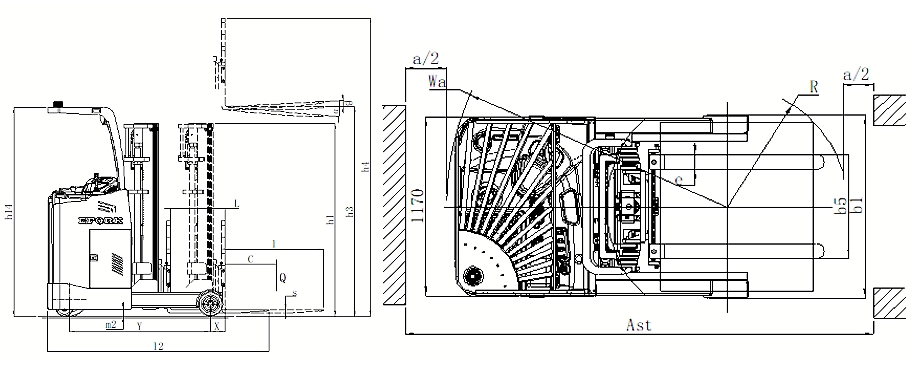

Specification:
| Model | NRZ25 | |
| Capacity | kg | 2500 |
| Lifting height | mm | 3000-10000 |
| Load center | mm | 500 |
| Wheelbase | mm | 1693 |
| Fork tilting angle Front/Rear | ° | 3/5 |
| Min.ground clearance | mm | 80 |
| Aisle Width for Pallet 1000*1200 crossways | mm | 3042 |
| Min.turning radius | mm | 1996 |
| Max.travel speed (Unladen/Laden) | km/h | 10/9 |
| Max.gradeability (Unladen/Laden) | ％ | 10 |
| Drive Motor | kw | 6.5AC |
| Battery voltage/nominal capacity | V/Ah | 48/400 |
| Type of Drive Control | AC |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics

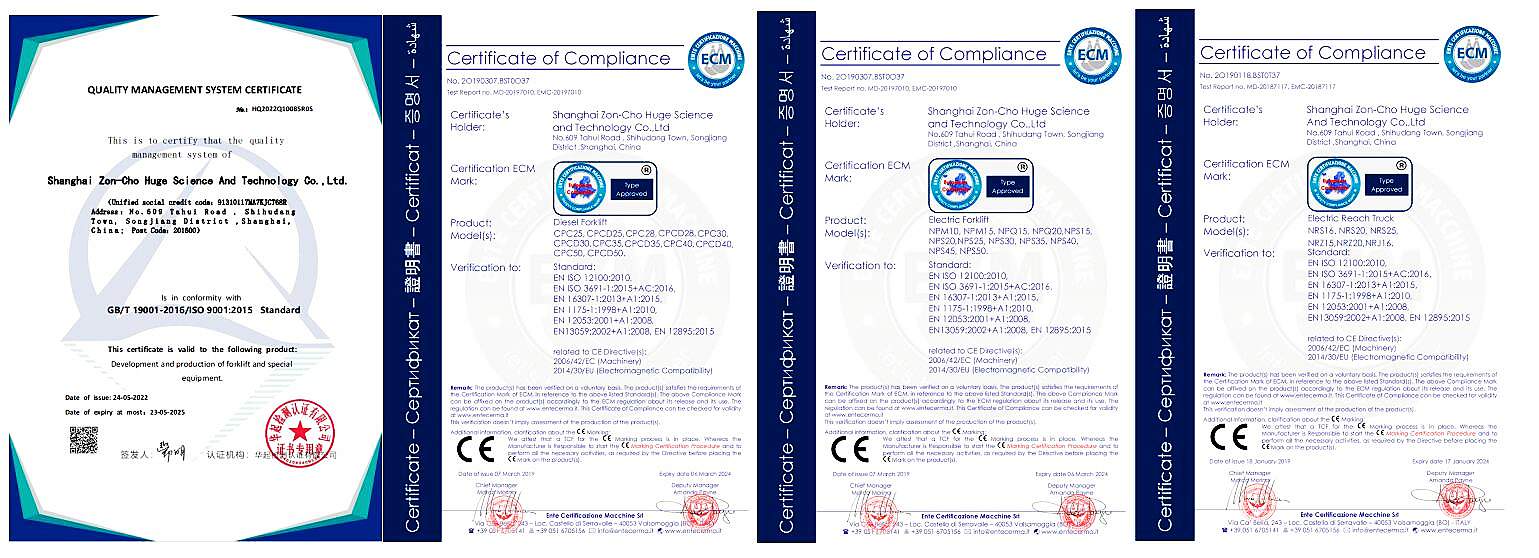

Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
